Zero-sequence and phase-sequence integrated electronic voltage sensors ensure accurate voltage detection, optimized electrical stability, and enhanced fault monitoring. Designed for industrial and grid applications, they provide superior insulation, extended durability, and precise sequence measurement.
Product Overview

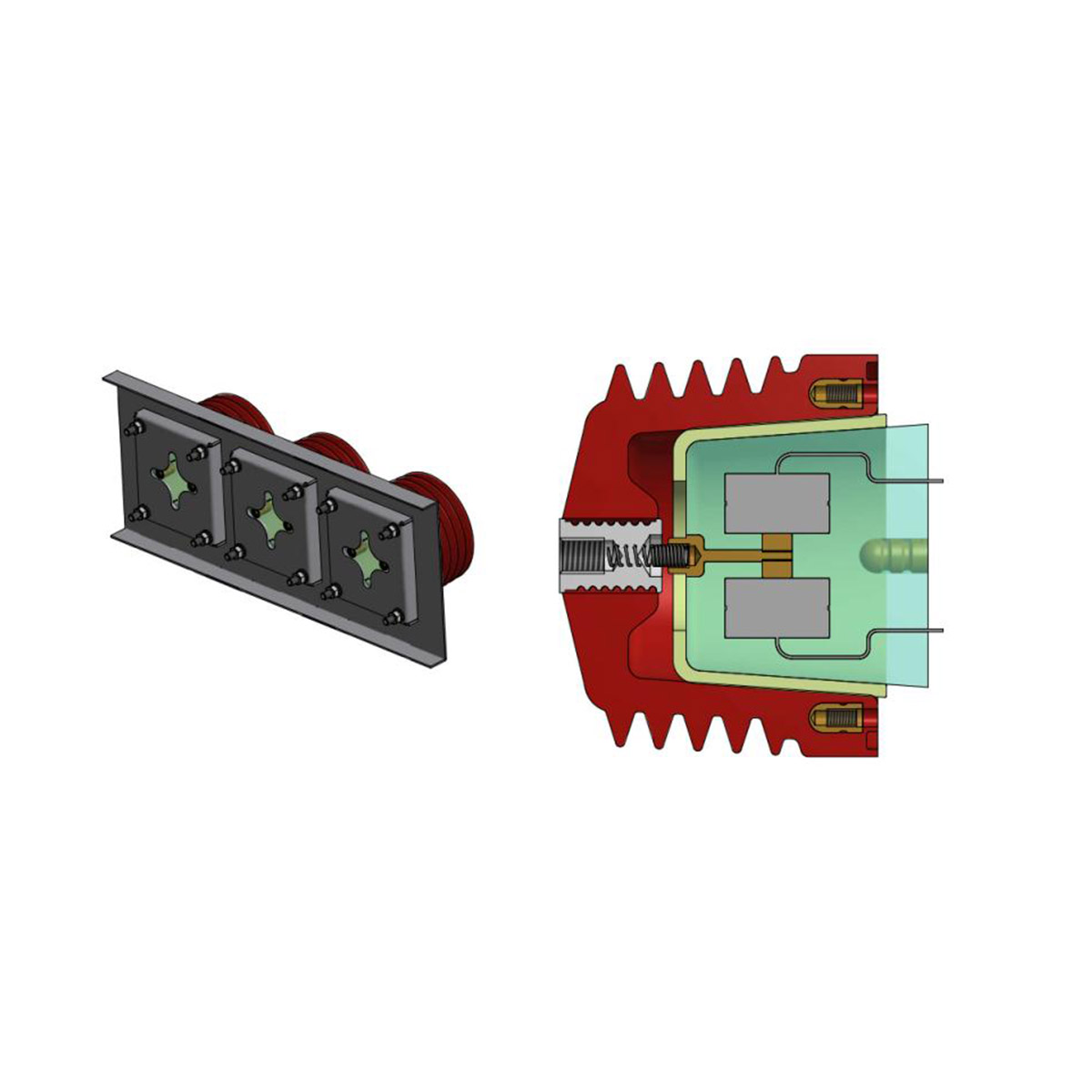

The Zero-sequence and Phase-sequence Integrated Electronic Voltage Sensor is an advanced high-voltage power protection sensor specifically designed for zero-sequence protection in power systems. The sensor directly outputs small voltage signals without the need for secondary PT (Potential Transformer) conversion, simplifying the system structure, reducing sources of error, and meeting the demands of “digitalization, intelligentization, and networking” in power systems. It is widely used in gas-insulated ring main units and other power facilities for intelligent measurement and monitoring of zero-sequence and phase-sequence voltages.
Features
- Small Signal Output: Directly outputs small voltage signals, simplifying system design, reducing sources of error, and improving accuracy.
- Coreless Design: Does not contain a core or only uses a small lightweight core, preventing core saturation, providing a wide frequency response range and large measurement range.
- High Safety: No overcurrent or ferromagnetic resonance occurs during secondary short circuits, reducing the risk of system failure and ensuring the safety of both equipment and personnel.
- High Reliability: Able to operate stably during system failure, ensuring reliable operation of protective devices.
- Compact and Powerful Functionality: With multiple functions, it can output either zero-sequence voltage or phase-sequence voltage. Its compact size, lightweight, high energy efficiency, and reduced ferromagnetic pollution make it suitable for modern systems.
- Flexible Configuration: Can output either zero-sequence voltage or phase-sequence voltage, and zero-sequence voltage can be synthesized through control devices to adapt to different application scenarios.
Applications
- Gas-insulated Ring Main Units: Widely used for zero-sequence protection and voltage measurement in gas-insulated ring main units and other high-voltage power facilities.
- Power Automation Systems: Suitable for the comprehensive automation systems of substations, meeting the needs for digitalization, intelligentization, and networking.
- Smart Grids: Supports zero-sequence voltage monitoring and protection in smart grids, enhancing the reliability and stability of power systems.
- Power Equipment Protection: Used in the protection and control systems of various power equipment to ensure the safe and reliable operation of devices.
- High-voltage Power Systems: Suitable for accurate voltage measurement and real-time monitoring in high-voltage power systems.
