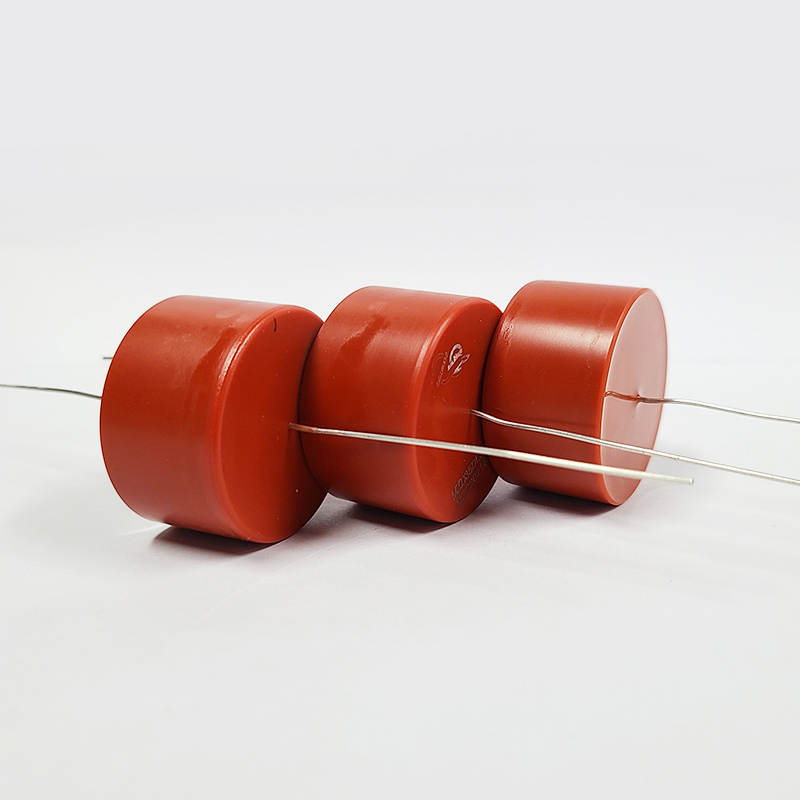

Axial Lead High-Voltage Ceramic Capacitor

Product Overview

The Axial Lead High-Voltage Ceramic Capacitor is made from N4700 ceramic material and is widely used in high-voltage power supplies, CO2 lasers, X-ray machine power supplies, smart grids, and various industrial instruments. N4700 ceramic capacitors are a new type of high-performance ceramic material with a high dielectric constant, making them suitable for large capacitance applications. These capacitors offer excellent electrical performance, long service life, and are designed to operate reliably in high-frequency, high-voltage, and high-current environments.

Features

• Low Loss: At 1 kHz, the loss factor is as low as 0.2%, ensuring efficient operation.
• Excellent High-Frequency Performance: Capable of operating at frequencies ≥550 kHz.
• High Voltage Tolerance: Can withstand voltages up to ≥45 KVDC, making them suitable for high-voltage power supply applications.
• High Current Tolerance: Can handle currents greater than 20A, making it suitable for high-current environments.
• High Insulation Resistance: Insulation resistance exceeds 200,000 MΩ, ensuring electrical safety and stability.
• Long Service Life: At temperature ranges from -25℃ to +85℃, the capacitance variation is less than ±28%, with a service life exceeding 10 years.

Applications

• High-Voltage Power Supplies: Widely used in high-voltage power systems, providing stable electrical performance.
• CO2 Laser Systems: Suitable for high-voltage pulse generation and high-voltage laser systems.
• X-Ray Machine Power Supplies: Used in X-ray equipment's power supply section to ensure safety and stability.
• Smart Grids: Applied in smart grids to support high-voltage and high-current requirements.
• Industrial Instruments: Provides efficient capacitive performance for various industrial equipment and instruments.
• Military Projects: Suitable for high-demand military projects, meeting the electrical requirements of extreme working conditions.
