The modular sensor is a high-precision detection device designed for optimized signal processing, reliable data collection, and enhanced operational efficiency. Suitable for industrial automation and smart monitoring applications, it ensures superior accuracy and extended durability.
Product Overview

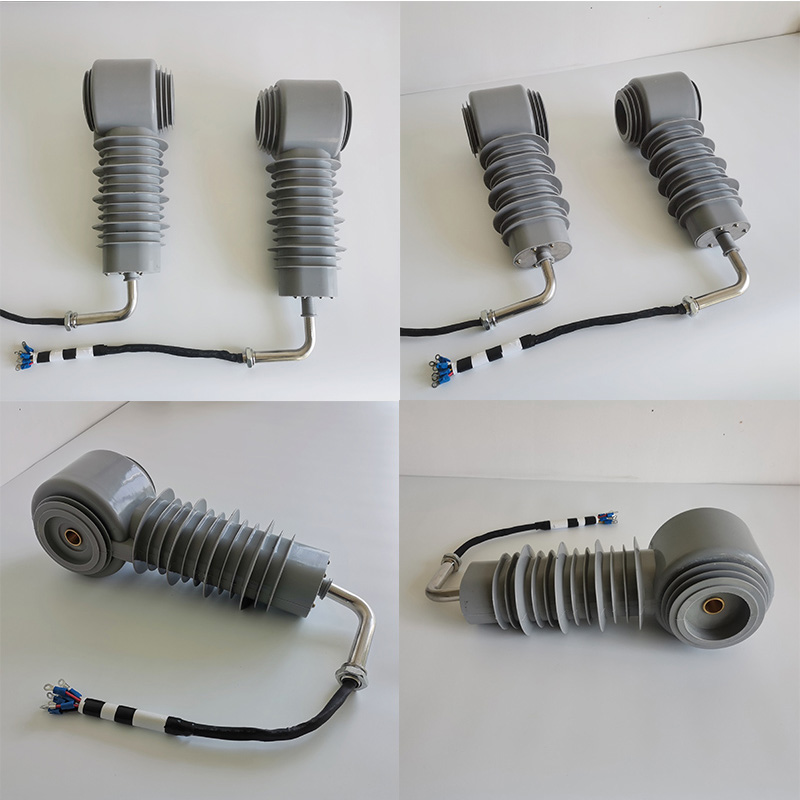

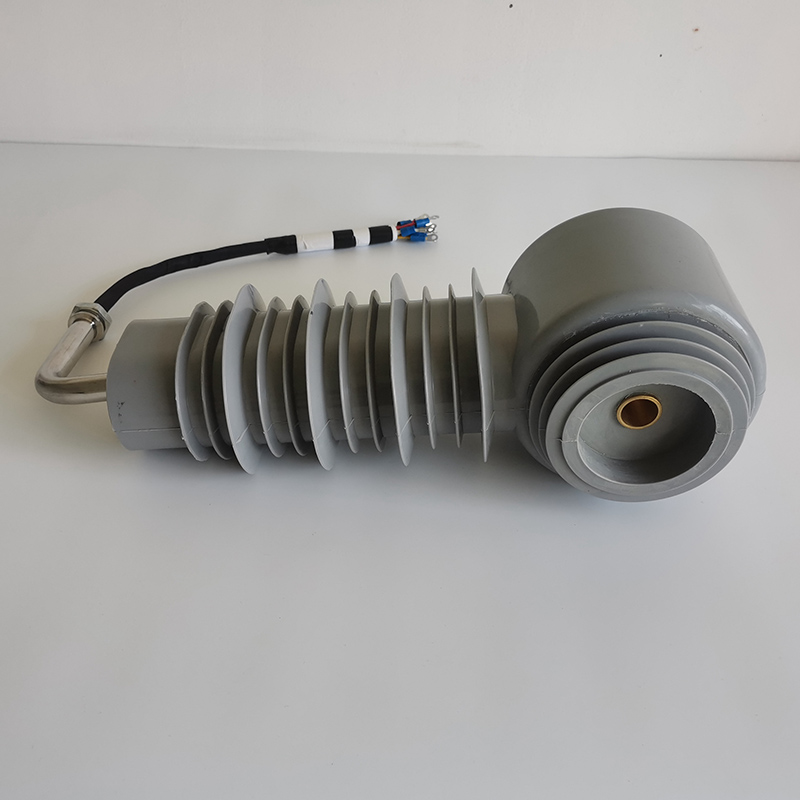

The modular sensor is an innovative sensor packaging design. Unlike traditional integrated packaging, the modular sensor uses a detachable, modular shell, making it easier to maintain and recycle materials. This design greatly enhances the sensor's maintainability, extends its lifespan, and reduces environmental impact. It is suitable for various power and industrial applications, especially in environments where high precision and reliability are required. Its wide voltage range and high-precision performance make it an ideal choice for high-voltage power systems and complex equipment.
Features
- Modular Packaging: Unlike traditional integrated packaging, the modular design allows for easier maintenance and material recycling, reducing overall maintenance costs.
- Wide Voltage Range: Supports voltage ratings from 10KV to 75KV, meeting diverse application needs.
- High Accuracy: Accuracy level of 1/3P (2%~190%Un), providing precise voltage and phase sequence monitoring.
- Low Partial Discharge: Partial discharge voltage is less than 5PC (14.5KV), ensuring high reliability and safety.
- High Temperature Tolerance: Operating temperature range from -40°C to +70°C, making it suitable for a wide range of environmental conditions.
- High Efficiency: Operational efficiency of 2 MQ, ensuring stable and reliable long-term performance.
Applications
- High-Voltage Power Systems: Used in power transmission and substation facilities to monitor voltage and phase sequence, ensuring stable operation of power systems.
- Power Monitoring and Measurement Equipment: Applied in precise measurement and monitoring within power systems, ensuring accurate and reliable data.
- Industrial Automation Equipment: Suitable for industrial automation control systems, providing real-time voltage monitoring and ensuring efficient operation of equipment.
- Electrical Monitoring in Complex Equipment: Used for electrical performance monitoring in various complex equipment, such as medical devices and large industrial machinery.
| Item | Value |
| Voltage Level | 10KV-42KV-75KV |
| Zero Sequence Voltage | 1/3P (2%~190% Un) |
| Partial Discharge | <5PC (14.5KV) |
| Voltage Variation | 10KV/√3:3.25V/√3:6.5V/3 |
| Ambient Temperature | -40℃ ~ +70℃ |
| Working Efficiency | 50H |
| Rated Power | 2 MΩ |
| Accuracy Grade | Phase Sequence Voltage: (0.5/3P) |
