The high-frequency capacitor for X-ray machine power supply ensures optimized energy storage, reliable voltage regulation, and superior electrical insulation. Designed for medical imaging systems, it enhances power efficiency, extends lifespan, and ensures stable high-frequency operation.
Product Overview

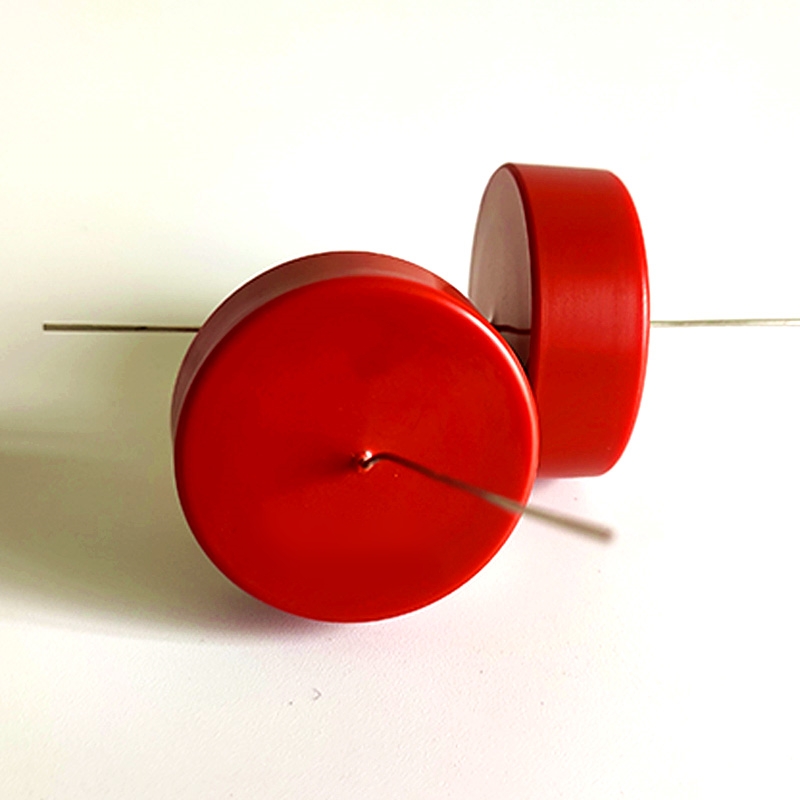

The High-Frequency Capacitor for X-ray Machine Power Supply is made from N4700 ceramic material and is specifically designed for high-voltage power supplies, CO₂ laser systems, X-ray machine power supplies, smart grids, and other applications. N4700 ceramic capacitors have a high dielectric constant and excellent electrical performance, capable of withstanding higher voltage and current levels with very low dielectric losses. Their outstanding high-frequency characteristics, voltage resistance, and long lifespan make them the ideal choice for applications in high-frequency, high-voltage, and high-current environments.
Features
- Low Loss: At 1 kHz, the loss factor is as low as 0.2%, ensuring efficient and stable operation.
- Good High-Frequency Characteristics: Offers excellent high-frequency performance, with an operating frequency of ≥550 kHz, meeting high-frequency power supply demands.
- High Voltage Resistance: Can withstand voltages up to ≥45 KVDC, suitable for high-voltage power supplies and X-ray equipment needs.
- High Current Handling Capacity: Supports high-current operations of ≥20A, making it suitable for high-current load environments.
- High Insulation Resistance: Insulation resistance exceeds 200,000 MΩ, ensuring capacitor safety under extreme environmental conditions.
- Long Lifespan: With a temperature range of -25℃ to +85℃, the capacitance variation is less than ±28%, and the product lifespan exceeds 10 years.
Applications
- High-Voltage Power Supplies: Used in high-voltage power systems to ensure efficient and stable energy supply.
- CO₂ Laser Systems: Ideal for high-voltage pulse generation, supporting stable laser system operation.
- X-ray Machine Power Supplies: Provides high-voltage and high-current capacitive support, ensuring stable power supply for X-ray equipment.
- Smart Grids: Used in smart grids for high-voltage and high-current capacitive needs.
- Industrial Instruments: Widely used in industrial equipment and instruments, offering stable support for high-frequency and high-voltage applications.
- Military Projects: Meets military project requirements for high reliability, voltage resistance, and high-current capacitive performance.
| Parameter | Range |
| Ceramic Dielectric | N4700(DL) |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥200000 MΩ |
| Dissipation Factor | ≤0.2% |
| Temperature Characteristics | ±28% |
