Y5V material high-voltage ceramic disc capacitors are compact electronic components designed for high capacitance density, reliable insulation, and optimized voltage regulation. They are widely used in industrial circuits, power management systems, and precision electronic applications requiring stable performance.
Product Overview

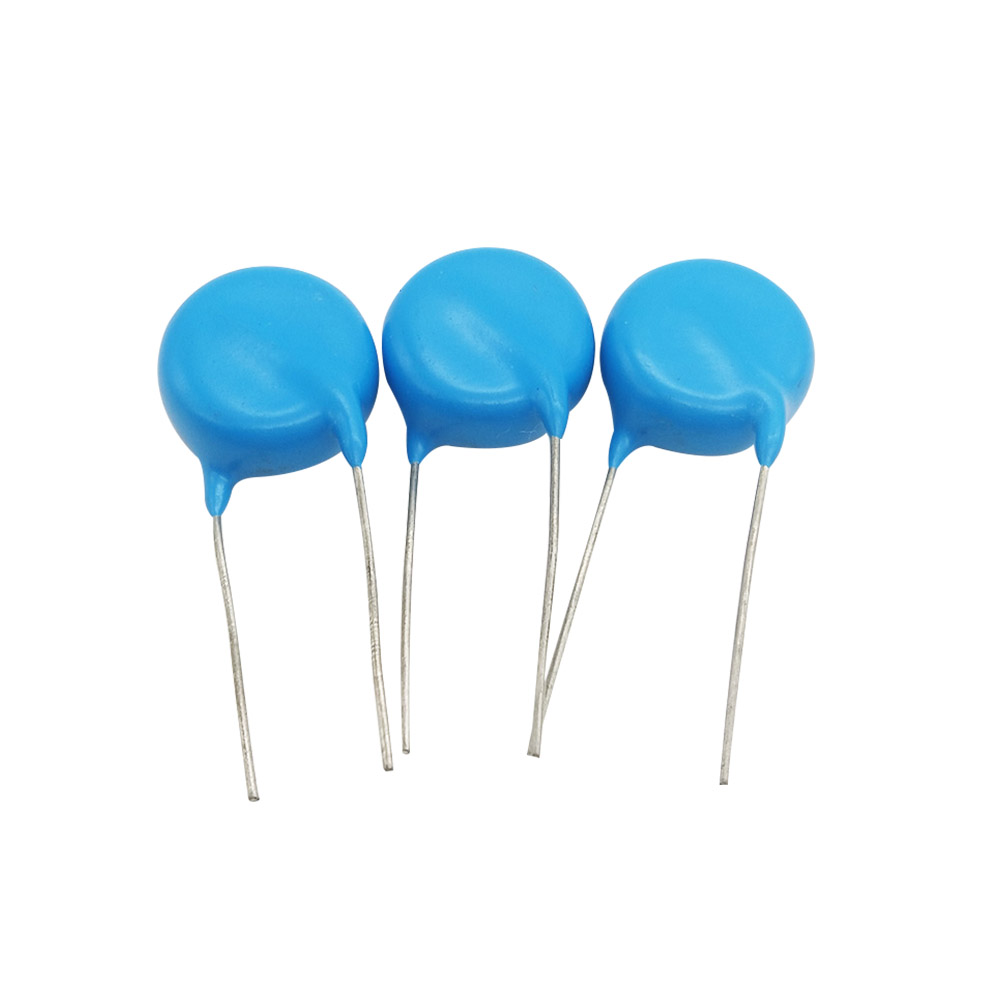

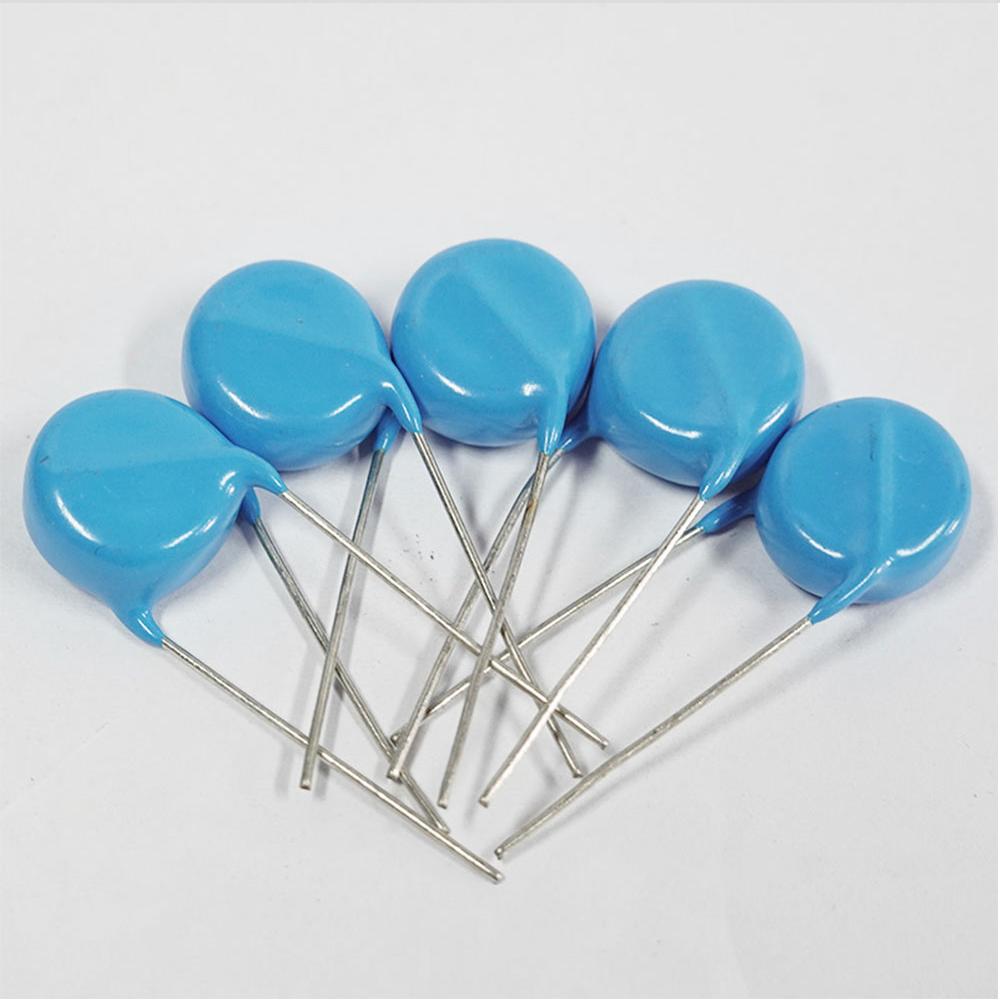

The Y5V Material High-Voltage Ceramic Disc Capacitor is made from high-quality Y5V ceramic material, designed for high-frequency and high-voltage electrical systems. It is widely used in applications such as laser pulse generators, high-frequency power supplies, and X-ray machine power supplies. This capacitor offers excellent high-voltage endurance and long lifespan, ensuring stable operation in high-voltage environments and meeting the needs of modern high-voltage electronic equipment. Its low loss and high-frequency characteristics ensure efficient energy transmission, making it suitable for various industrial applications.
Features
- Low Loss: Loss factor as low as 1% at 1 kHz, ensuring high-efficiency performance in high-frequency environments.
- Excellent High-Frequency Performance: Suitable for operating conditions with frequencies ≥100 kHz, meeting the requirements of high-frequency power supplies and systems.
- High Current Endurance: Capable of withstanding currents greater than 15 mA, making it suitable for high-current environments.
- Superior High-Voltage Endurance: Capable of withstanding up to twice the rated voltage, suitable for high-voltage working conditions.
- High Insulation Resistance: Insulation resistance greater than 100,000 MΩ, ensuring safe and stable electrical isolation.
- Long Lifespan: The product offers a lifespan of over 10 years, ensuring long-term stable operation.
Applications
- High-Frequency High-Voltage Power Supplies: Widely used in high-frequency and high-voltage power supply systems, providing reliable capacitive support.
- Laser Pulse Systems: Suitable for CO₂ lasers and high-voltage pulse generators, ensuring stable pulse output.
- X-Ray Machine Power Supplies: Used in power supply systems for X-ray equipment, providing stable voltage and current support.
- Non-Destructive Testing: Ensures stable operation in non-destructive testing equipment.
- Airport Security Equipment: Provides efficient power support in airport security equipment.
- Negative Ion Products: Widely used in negative ion products and air purifiers, ensuring their efficient operation.
| Parameter | Range |
| Ceramic Dielectric | Y5V |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥10000 MΩ |
| Dielectric Loss | ≤2% |
| Temperature Characteristics | +22%~80% |
