Voltage multiplier modules and capacitor strings are advanced electrical components designed to efficiently boost voltage levels while maintaining stability and reliability. They feature optimized insulation, high-frequency efficiency, and extended operational lifespan, making them ideal for industrial power systems and precision electronics.
Product Overview

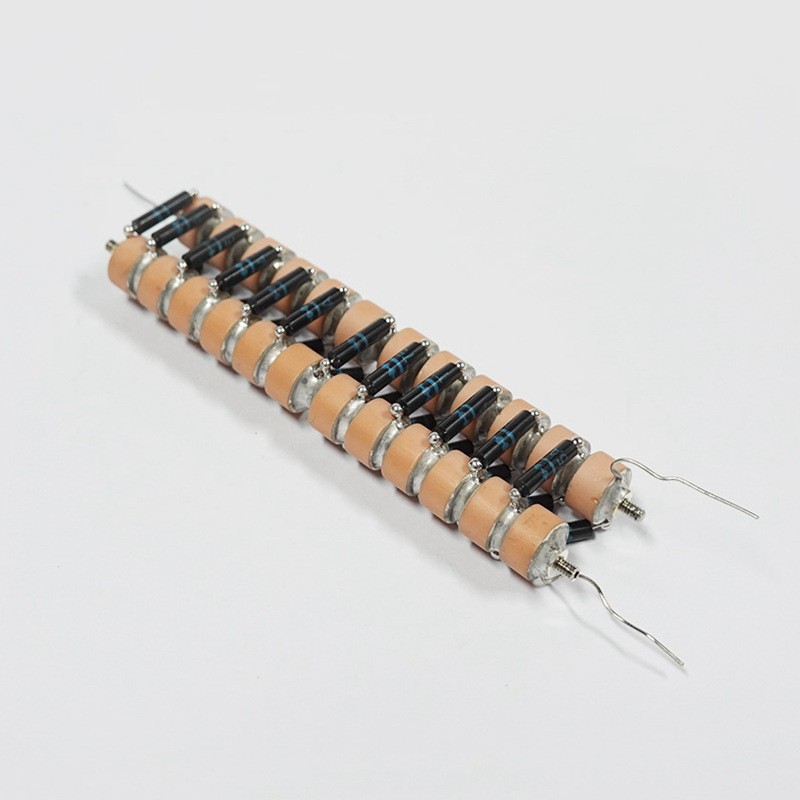

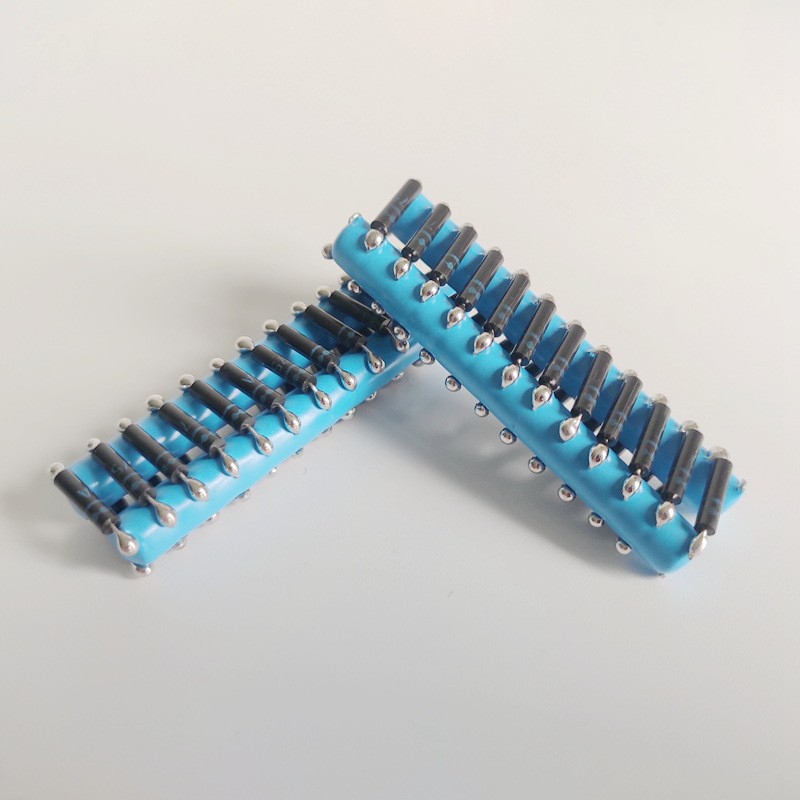

The Voltage Multiplier Module & Capacitor Strings are specially designed capacitor assemblies for high-voltage circuits, widely used in voltage multiplier circuits, electrostatic powder spray guns, welding machines, ion generators, and other equipment. By connecting multiple capacitors in series, this product effectively multiplies the voltage, enhancing system stability and performance. Customization options, including voltage, capacitance, number of stages, and material selection, are available to meet the specific requirements of different application scenarios.
Features
- Customization: Voltage, capacitance, number of stages, and materials can be precisely customized to meet the needs of different devices and working environments.
- High Voltage Adaptability: Suitable for high-voltage currents and pulse applications, capable of withstanding voltages up to several kilovolts.
- Excellent Performance: Low loss, good high-frequency characteristics, suitable for high-frequency and high-voltage circuits.
- Long Service Life: Made with high-quality materials, ensuring long-term stable operation with excellent insulation and voltage endurance.
Applications
- Voltage Multiplier Modules: Used in voltage multiplier circuits for voltage boosting.
- Electrostatic Powder Spray Guns: Provides high voltage power for electrostatic spray coating equipment.
- High-Voltage Ion Generators: Used in ion generators to boost voltage and generate negative ions.
- Welding Machines: Supplies stable high-voltage current in welding machine power systems.
- High Voltage DC Generators: Used for high-voltage power transmission in generators.
- Medical Equipment Power Supplies: Applied in medical electrical equipment to provide highly stable power support.
| Parameter | Range |
| Rated Voltage | 8KV, 10KV, 12KV, 15KV, 20KV, 25KV, 30KV, 40KV |
| Capacitance | 100pF, 150pF, 200pF, 220pF, 250pF, 280pF, 300pF, 310pF, 330pF, 350pF, 400pF, 470pF, 500pF,1000pF, 2200pF |
| Number of Sections | 3,4,6,8,9,10,12,14, other |
| Ceramic Material | N4700, Y5T, Y5U, other |
| Ceramic Dielectric | Operating Temperature | Insulation Resistance (MΩ) | Dielectric Loss | Temperature Drift |
| N4700 | -25~+85℃ | ≥200000 | ≤0.2% | ±28% |
| Y5T | -25~+85℃ | ≥100000 | ≤0.5% | +22%，-33% |
| Y5U | -25~+85℃ | ≥10000 | ≤2% | +22%，-56% |
