The Rs600 current measurement integrator is a high-precision device designed for accurate current sensing, signal integration, and optimized voltage regulation. It ensures reliable electrical monitoring, superior stability, and efficient performance in industrial power systems and energy management applications.
Product Overview

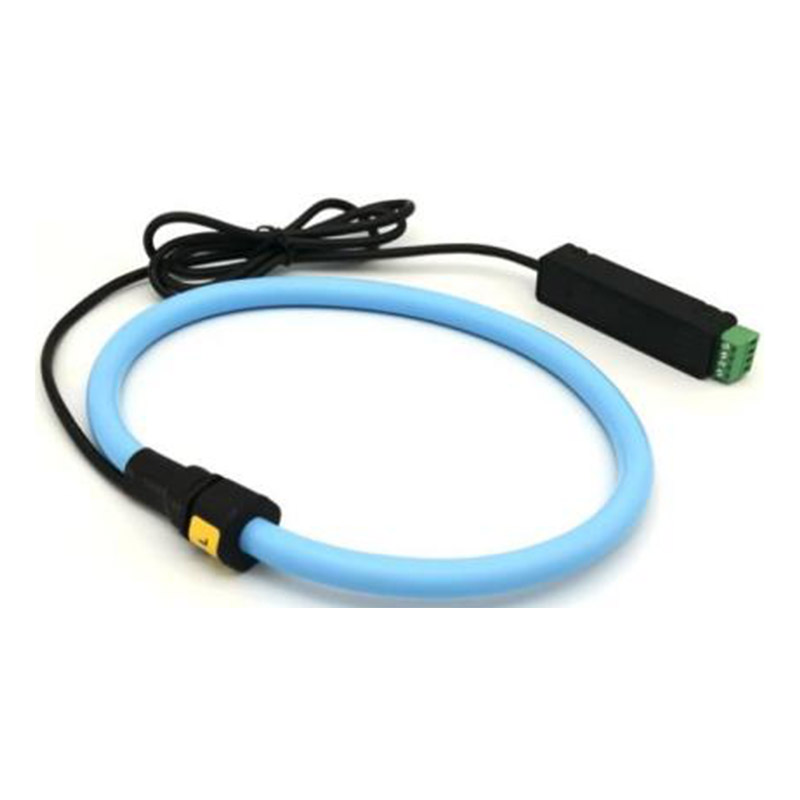

The Rs600 Current Measurement Integrator is a highly accurate and reliable current measurement tool capable of faithfully reproducing the input current waveform while filtering and amplifying it, resulting in a smoother and more practical output waveform. The device not only offers a wide measurement range and excellent precision but also features a broad response bandwidth, making it suitable for a variety of complex operating environments. It is widely used in fields requiring precise current measurement.
Features
- Accuracy: Accurately reproduces the input current waveform, ensuring high-precision measurement results.
- Filtering and Amplification: Includes filtering and amplification functions to smooth the current waveform, facilitating subsequent processing.
- Stability: Stable operation, resistant to external environmental interference, ensuring reliable long-term use.
- Wide Measurement Range: Supports various current measurement needs, adaptable to a wide range of application environments.
- High Response Bandwidth: Capable of handling a broad frequency range of current waveforms, enhancing response speed.
Applications
- Power Industry: Used for current monitoring and measurement in power systems, ensuring safe operation of equipment.
- Metallurgical Industry: Widely used for precise control and measurement of currents in metallurgical processes.
- Electroplating Industry: Used for precise adjustment and monitoring of current during electroplating processes.
- Welding Industry: Ensures stable current during welding, achieving optimal welding results.
- Variable Frequency Drive Equipment: Applied in variable frequency drive systems for current monitoring, ensuring the precision and stability of equipment operation.
| Item | Value |
| Input Current Range (AC) | 600mA (customizable) |
| Measurement Current Range | 5%-120% |
| Power Frequency | 45-65 Hz |
| Frequency Band | 10-10 KHz |
| Rated Output Voltage (with integrator) | 0.1-5 Vac (optional) |
| Supply Voltage | 9-12 V/12-24 V |
| Power Consumption | < 10 mA |
| Offset Voltage | < 3 mV |
| Offset Drift | < ±1 mV/°C |
| Accuracy | < 1% |
| Linearity | < 1 %FS |
| Response Time | < 100 us |
| Galvanic Isolation Voltage | 10 kV (AC, 1min) |
| Isolation Resistance | ≥ 1000 MΩ(@DC 500V) |
| Operating Temperature | -25°C ~ +60°C |
| Storage Temperature | -40°C ~ +70°C |
