Plastic encapsulated surface-mount Y2 capacitors provide high dielectric strength, optimized safety features, and compact design for EMI suppression and high-voltage insulation. These capacitors ensure stable operation, extended durability, and reliable voltage filtering in industrial and power electronics applications.
Product Overview

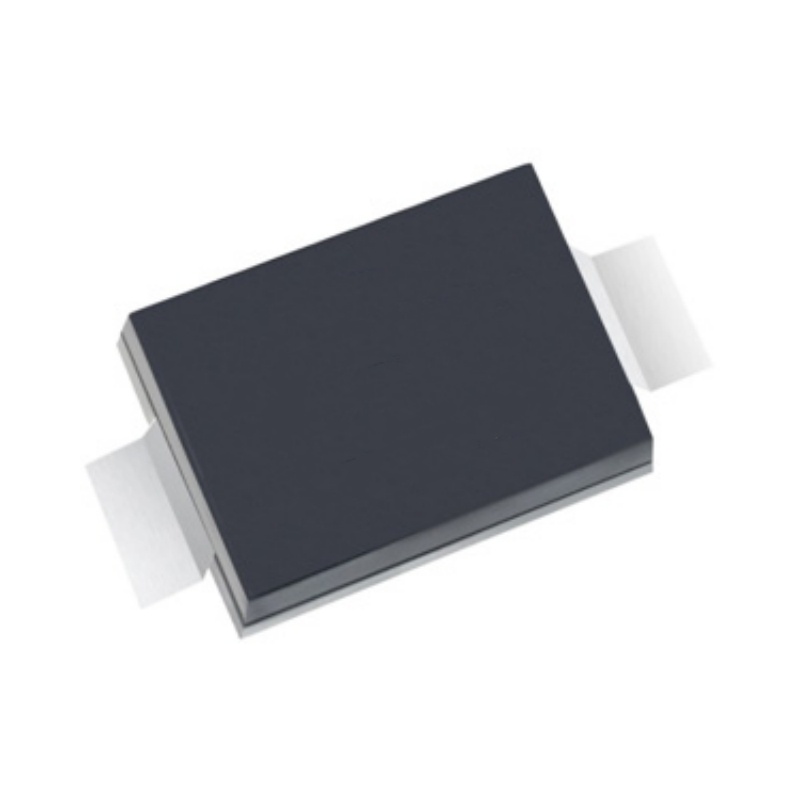

The Plastic Encapsulated Surface-Mount Y2 Capacitor is a high-performance capacitor designed with advanced encapsulation technology and high-quality dielectric materials. This capacitor is specially designed for AC circuits, offering excellent electrical performance and reliability. It is widely used in various electrical devices, particularly in electrical systems that require high safety and stability, such as switch-mode power supplies, AC line filters, and more.
Features
- Compact Design: With a height of only 2.5mm, this capacitor offers a significant reduction compared to traditional leaded capacitors, making it ideal for space-constrained designs.
- Wide Operating Temperature Range: Supports a wide operating temperature range from -40°C to +125°C, making it suitable for extreme environmental conditions.
- High Electrical Strength: It can withstand up to AC2500V, ensuring stability in high-voltage environments.
- Complete Safety Certifications: Complies with international safety standards such as UL, VDE, ENEC, ensuring product safety.
- Flame-Retardant Coating: Coated with a flame-retardant epoxy resin that meets UL94V-0 standards, enhancing safety and durability.
- Suitable for Automated Production: The tape-and-reel packaging is compatible with SMT automatic insertion soldering, supporting efficient automated production.
- Multiple Voltage Options: Available in AC250V rated voltage to meet various application needs.
- MSL 3 Level: Suitable for automated soldering processes and meets various standardized production requirements.
Applications
- AC Line Filters: As an AC line filter, it effectively reduces high-frequency interference and improves power quality.
- Switch-Mode Power Supplies: Widely used in the primary and secondary coupling of switch-mode power supplies to enhance power stability and noise immunity.
- AC Adapters: Used in AC adapters to ensure voltage stability and reduce noise.
- Modems: Ideal for D-A insulation and noise reduction in transformerless DAA modems, enhancing communication quality.
- Electrical Equipment: Suitable for a variety of electrical devices, ensuring stable operation in high-voltage and complex environments.

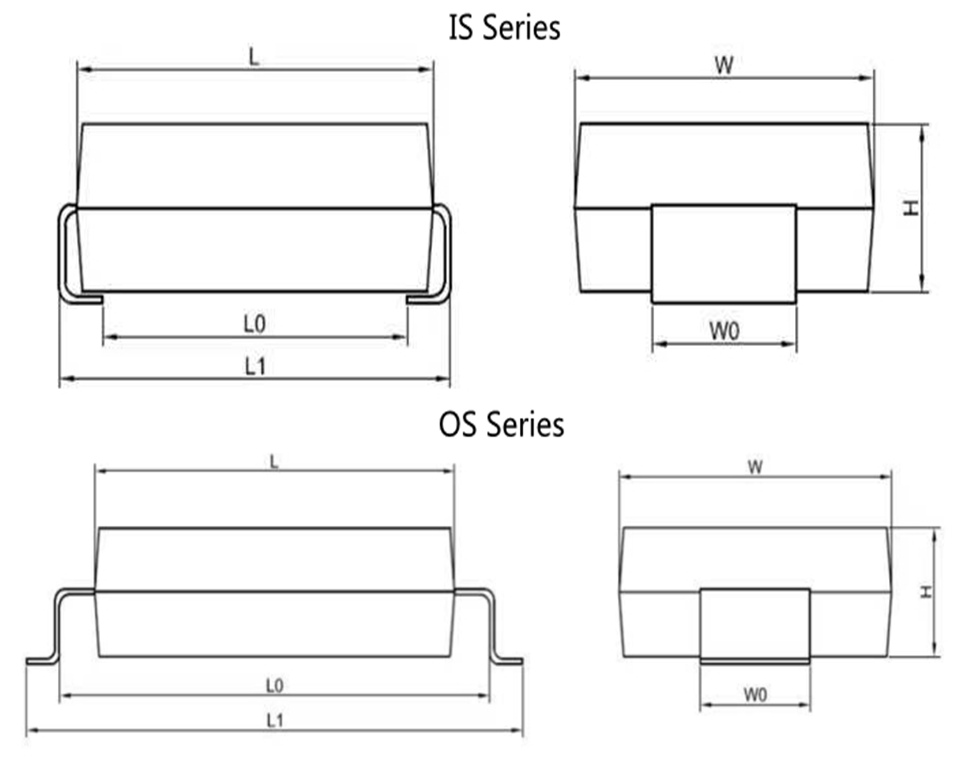

| Forming Type | IS | OS |
| L | 6.2±0.3 | 6.2±0.3 |
| W | 5.2±0.3 | 5.2±0.3 |
| H | 2.40±0.15 | 2.40±0.15 |
| L0 | 4.2±0.3 | 8.4±0.3 |
| W0 | 2.5±0.2 | 2.5±0.2 |
