Online power harvesting capacitors enable efficient energy collection, optimized voltage regulation, and reliable electrical storage. Designed for industrial and smart grid applications, they ensure superior dielectric performance, extended lifespan, and enhanced operational efficiency.
Product Overview

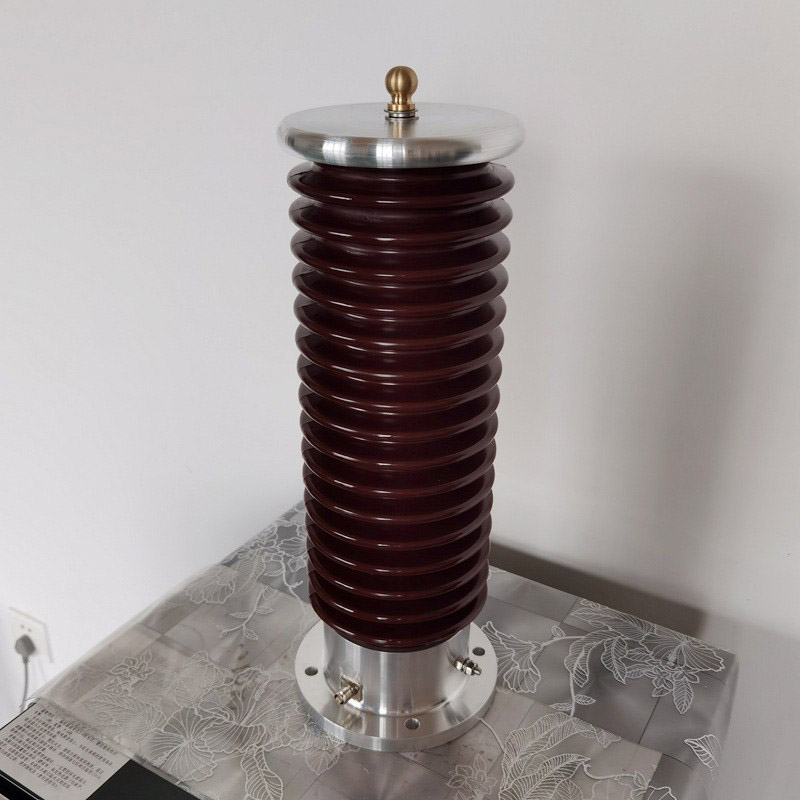

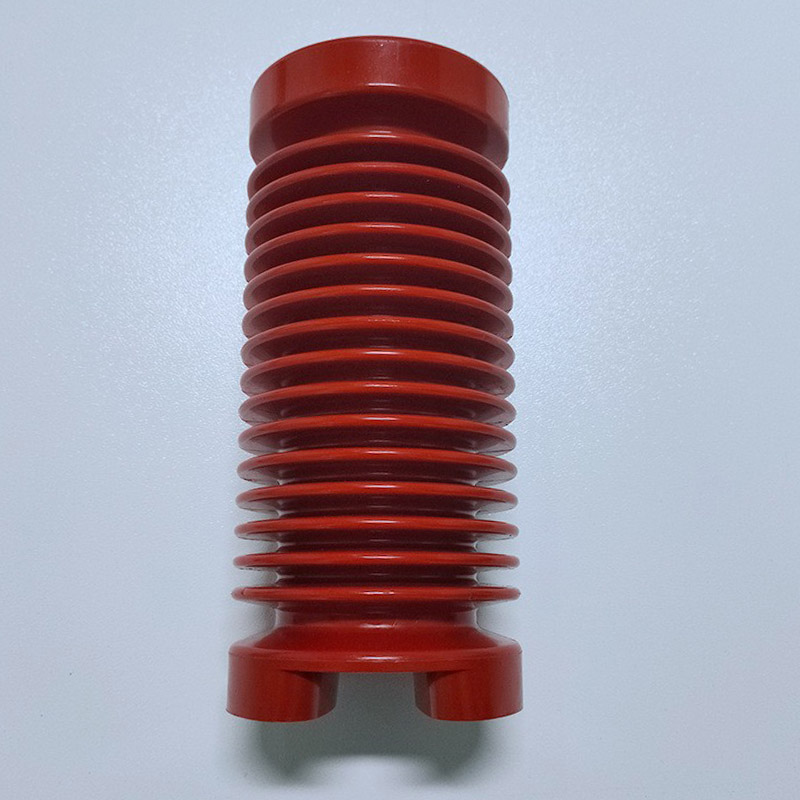

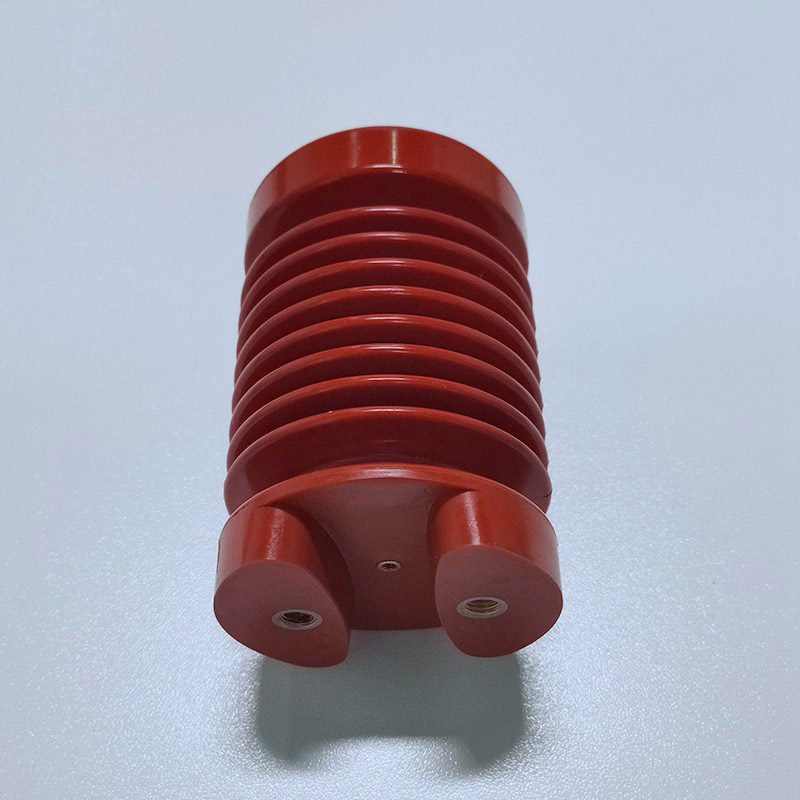

The online power harvesting capacitor is a high-performance capacitor designed for use in high-voltage power systems to harvest electrical energy and stabilize signal transmission. Made from advanced materials and manufacturing processes, this capacitor has a wide frequency range and excellent electrical performance, making it suitable for signal harvesting and power transmission in high-voltage environments. It operates with virtually no partial discharge (zero discharge), ensuring high reliability and safety.
Features
- Wide Frequency Range: Supports frequencies from 0.5MHz to 500MHz, meeting a variety of application needs.
- Zero Partial Discharge: No partial discharge (zero discharge) at rated operating voltage, ensuring system stability and safety.
- Low Loss: Loss is less than or equal to 1×10⁻⁴, ensuring efficient and stable power transmission.
- High Insulation Resistance: Insulation resistance is greater than or equal to 1×10¹⁴~15Ω, effectively preventing current leakage.
- Wide Temperature Range: Operates in temperatures ranging from -35°C to 125°C, capable of withstanding extreme environmental conditions.
- High Voltage Resistance: Rated voltage of 8/18/30KV, ensuring stable operation in high-voltage environments.
Applications
- High-Voltage Power Systems: Used in power equipment for signal harvesting and power transmission, ensuring efficient operation.
- Radio Communication: Applied in high-frequency communication systems to ensure stable signal transmission.
- Industrial Automation and Control: Used for signal harvesting and processing in industrial control systems to enhance system stability.
- High-Voltage Testing and Monitoring: Used in power testing equipment and monitoring systems to ensure accurate high-voltage signal measurement during testing.
| Item | Value | |
| Capacitance | 2/4/6/8NF±5% | 80pF±2pF |
| Rated Voltage | 8/18/30kv | 10/18/30kv |
| Frequency Range | 0.5MHz~500MHz | 0.5MHz~500MHz |
| Operating Temperature Range | -35℃~125℃ | -35℃~125℃ |
| Partial Discharge | Under rated operating voltage, no detection (zero partial discharge). | Under rated operating voltage, no detection (zero partial discharge). |
| Loss | ≤1×10⁻⁴ | ≤1×10⁻⁴ |
| Insulation Resistance | ≥1×10¹⁴~15Ω | ≥1×10¹⁴~15Ω |
