NPO material high-voltage ceramic disc capacitors are precision-engineered components offering ultra-stable capacitance, minimal dielectric loss, and excellent insulation properties. Designed for demanding electronic circuits, they provide reliable performance in power supplies, RF applications, and voltage regulation systems.
Product Overview

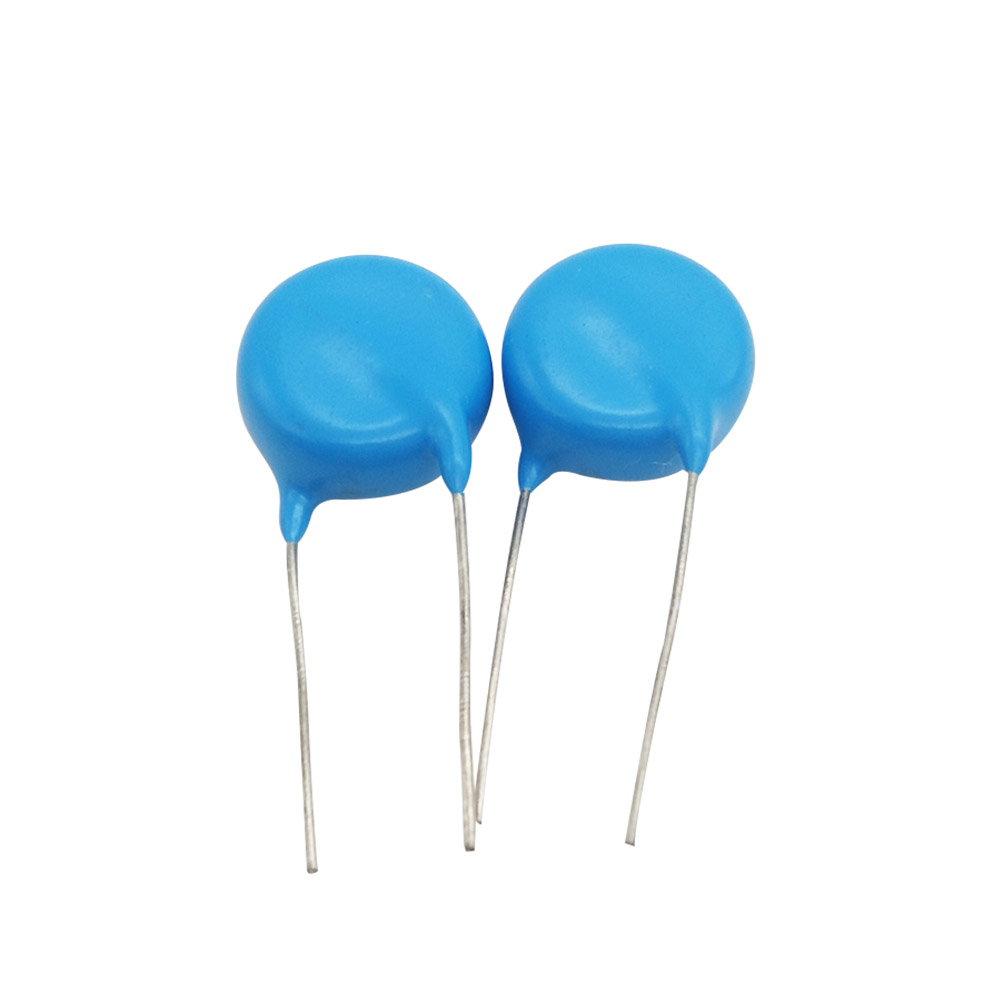

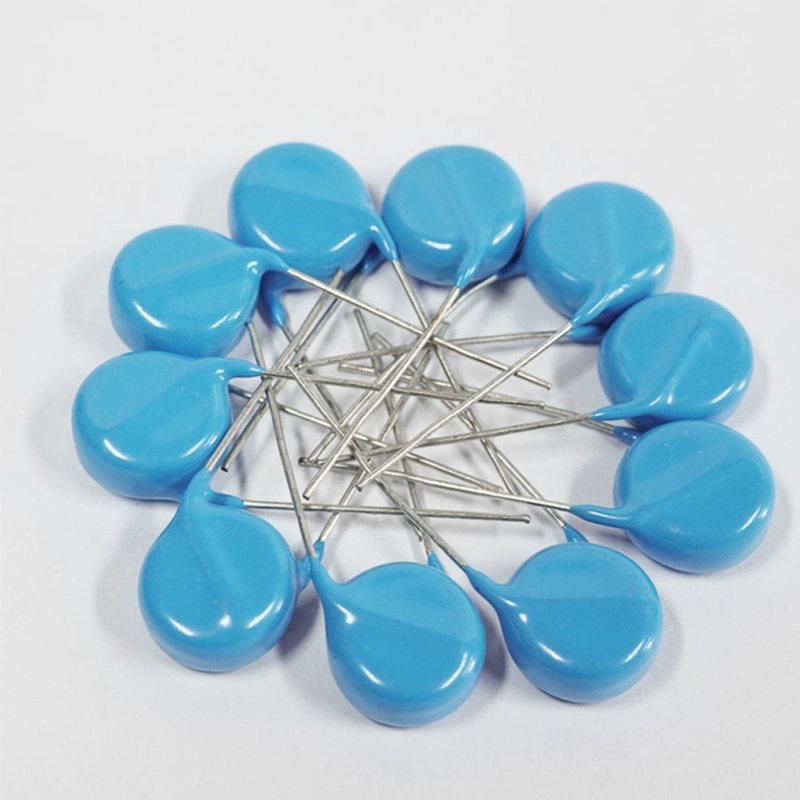

The NPO Material High-Voltage Ceramic Disc Capacitor is made from high-quality NPO ceramic material, offering low loss, excellent high-frequency performance, and superior high-voltage characteristics. It is ideal for use in high-voltage power supplies, laser pulse systems, and smart grid applications. This capacitor is designed to operate stably in high-frequency and high-voltage environments, ensuring reliable electrical performance and long lifespan. It provides safety and efficiency under extreme operating conditions.
Features
- Low Loss: With a loss factor as low as 0.05% at 1 kHz, improving energy transmission efficiency.
- Excellent High-Frequency Characteristics: Suitable for high-frequency electrical systems with frequencies ≥100 kHz, providing stable capacitive support.
- Superior High-Voltage Performance: Capable of withstanding up to twice the rated voltage, making it ideal for high-voltage environments.
- High Insulation Resistance: Insulation resistance greater than 1,000,000 MΩ, ensuring the safety and stability of high-voltage electrical systems.
Applications
- High-Voltage Power Supplies: Used in high-voltage power systems to provide stable and efficient voltage support.
- Laser Pulse Systems: Suitable for gas lasers and high-voltage pulse generators, ensuring precise laser pulse output.
- Smart Grid: Used in smart grid systems, providing reliable capacitive support to ensure stable power transmission and distribution.
| Parameter | Range |
| Ceramic Dielectric | NPO |
| Operating Temperature | -55~+125 ℃ |
| Insulation Resistance | ≥1000000 MΩ |
| Dielectric Loss | ≤0.05% |
| Temperature Characteristics | ±30 PPM/℃ |
