Through-hole ceramic capacitors are durable electronic components designed for stable capacitance, high insulation resistance, and reliable voltage regulation. Used in industrial circuits, power electronics, and precision applications, they ensure long-lasting performance and minimal signal interference.
Product Overview

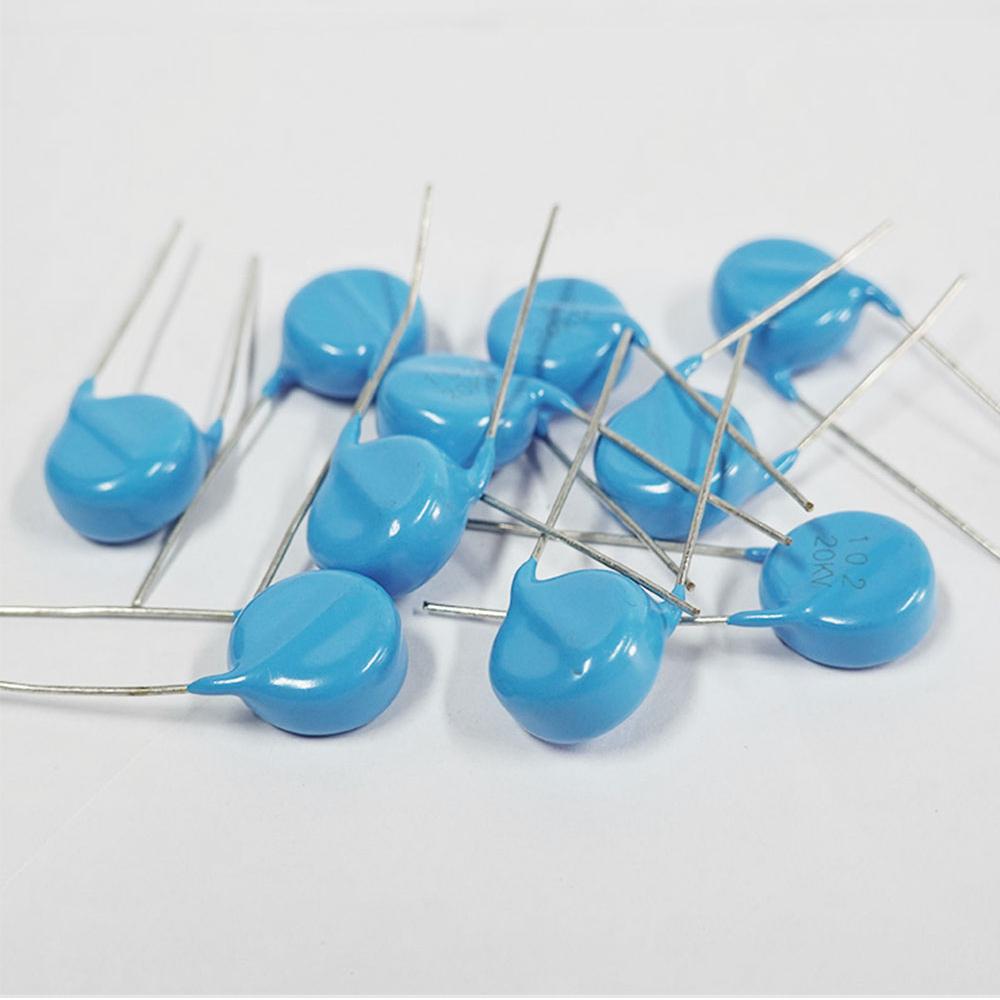

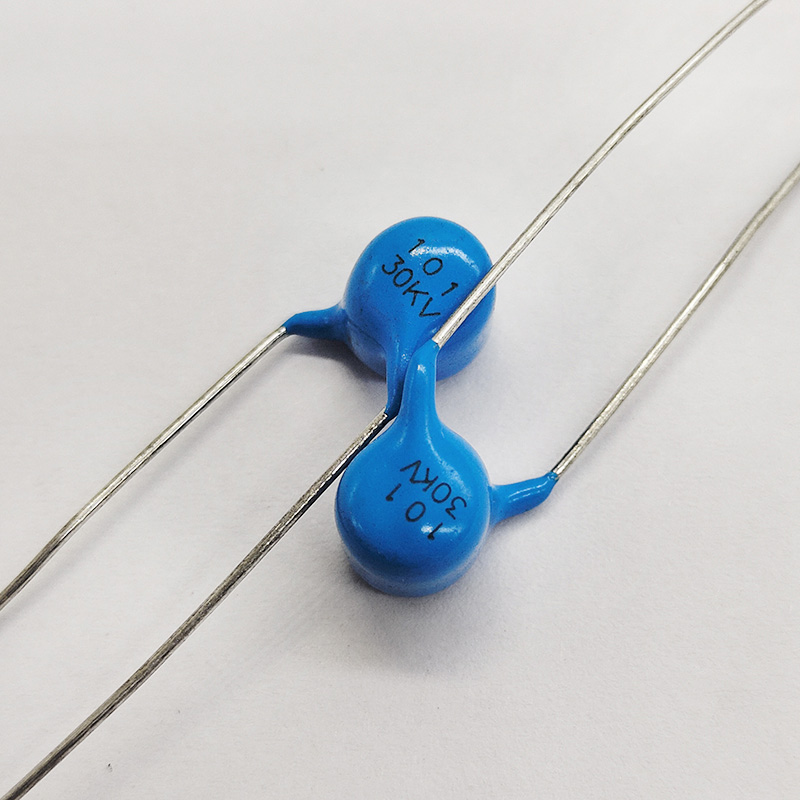

The Through-Hole Ceramic Capacitor is made of high-quality ceramic material and provides excellent high-frequency and high-voltage performance. It is widely used in high-voltage power supplies, laser pulse systems, and smart grid applications. The capacitor's low loss and high insulation resistance ensure stable performance even in demanding environments, making it ideal for electronic systems requiring high reliability and long lifespan.
Features
- Low Loss: Loss factor as low as 0.06% at 1 kHz, ensuring efficient operation and stable performance.
- High-Frequency Characteristics: Suitable for high-frequency applications with frequencies ≥100 kHz, ensuring stable performance in high-speed signal transmission.
- Excellent High-Voltage Endurance: Can withstand up to twice the rated voltage, making it suitable for high-voltage environments.
- High Insulation Resistance: Insulation resistance greater than 1,000,000 MΩ, providing strong electrical isolation for safety.
Applications
- High-Voltage Power Supplies: Used in high-voltage power systems, providing stable and reliable power support.
- Laser Pulse Systems: Ideal for gas lasers and high-voltage pulse generators, ensuring precise pulse output.
- Smart Grid: Widely used in smart grid systems, supporting efficient and stable energy transmission and management.
| Parameter | Range |
| Ceramic Dielectric | UJ |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥1000000 MΩ |
| Dielectric Loss | ≤0.06% |
| Temperature Characteristics | ±520 PPM/℃ |
