High-voltage high-frequency capacitors are precision electronic components designed for stable capacitance, optimized dielectric performance, and excellent insulation. Widely used in RF applications, power electronics, and industrial circuits, they ensure reliable energy transfer and minimal signal loss.
Product Overview

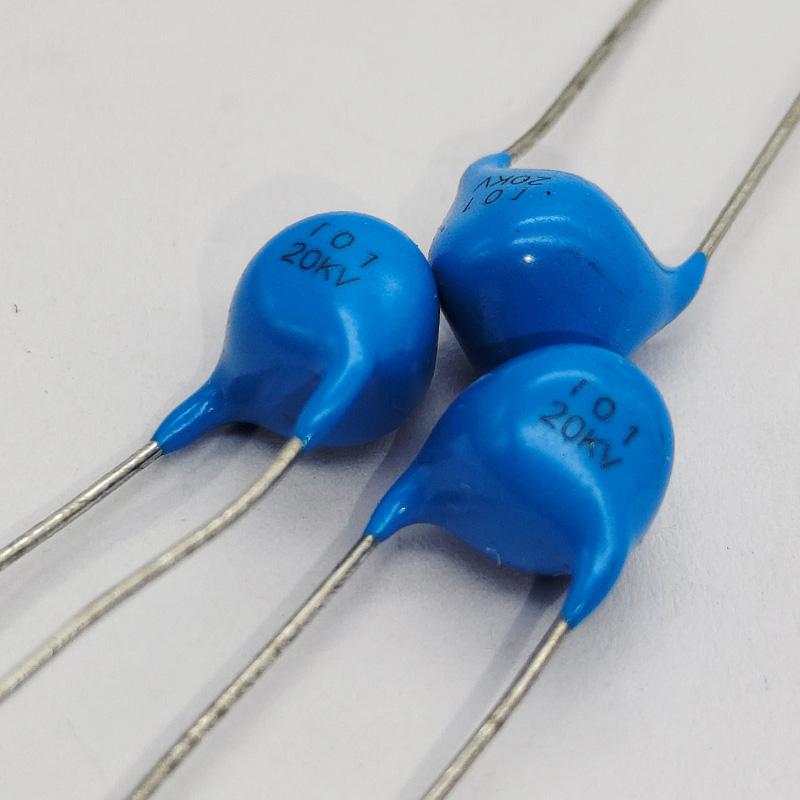

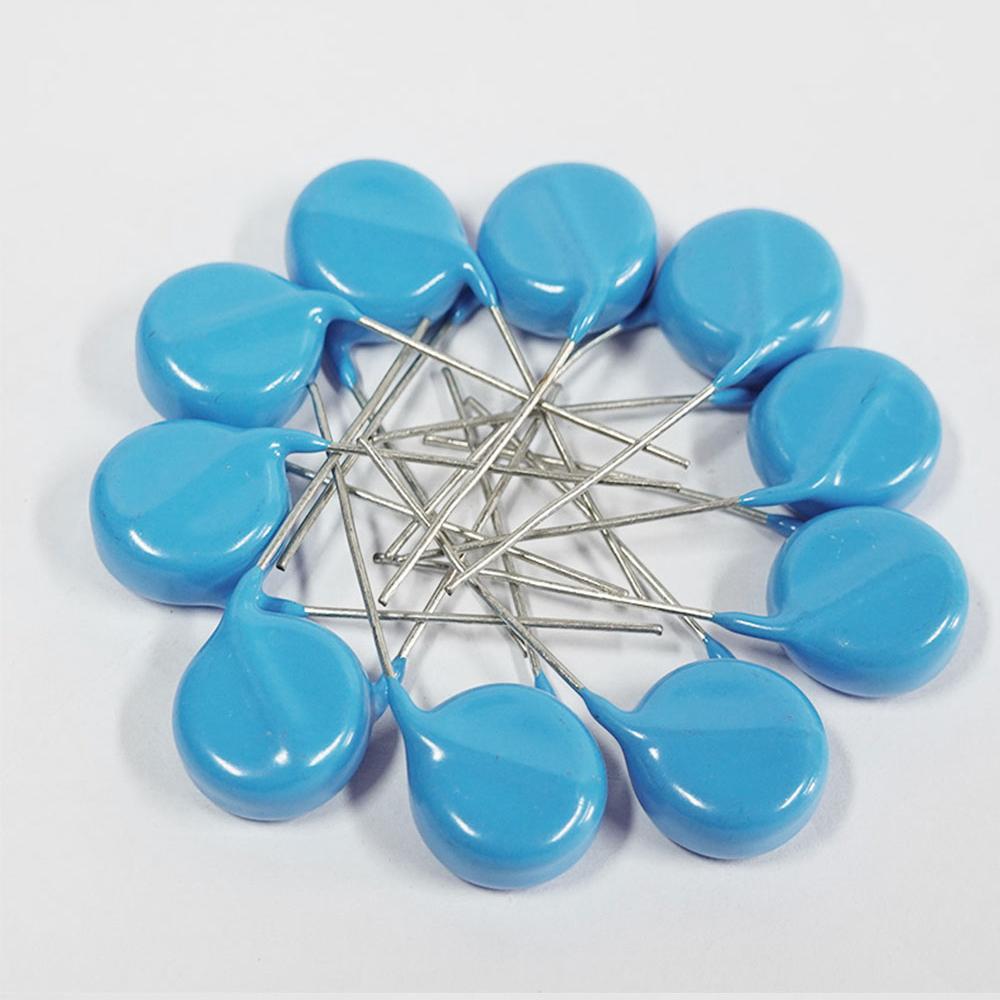

The High Voltage High-Frequency Capacitor is made from advanced ceramic materials, offering exceptional high-voltage and high-frequency performance. It is ideal for high-demand applications such as high-voltage power supplies, laser pulse systems, and smart grid technologies. Its low-loss characteristics, extremely high insulation resistance, and outstanding high-frequency performance ensure stable long-term operation even in the most demanding power environments.
Features
- Low Loss: Loss factor as low as 0.06% at 1 kHz, ensuring efficient energy transmission and minimal heat accumulation.
- High-Frequency Characteristics: Suitable for high-frequency applications with frequencies reaching ≥100 kHz, ensuring reliable performance in high-speed signal processing.
- High Voltage Capability: Can withstand up to twice the rated voltage, making it suitable for environments with high voltage requirements.
- High Insulation Resistance: Insulation resistance greater than 1,000,000 MΩ, providing excellent electrical isolation for safe operation.
Applications
- High Voltage Power Supplies: Used in high-voltage power systems to provide stable voltage output.
- Laser Pulse Systems: Widely used in gas lasers and high-voltage pulse generators to ensure precise control and efficient operation.
- Smart Grid: Plays a key role in smart grid systems by supporting the efficient transmission and management of electrical energy.
| Parameter | Range |
| Ceramic Dielectric | UJ |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥1000000 MΩ |
| Dielectric Loss | ≤0.06% |
| Temperature Characteristics | ±520 PPM/℃ |
