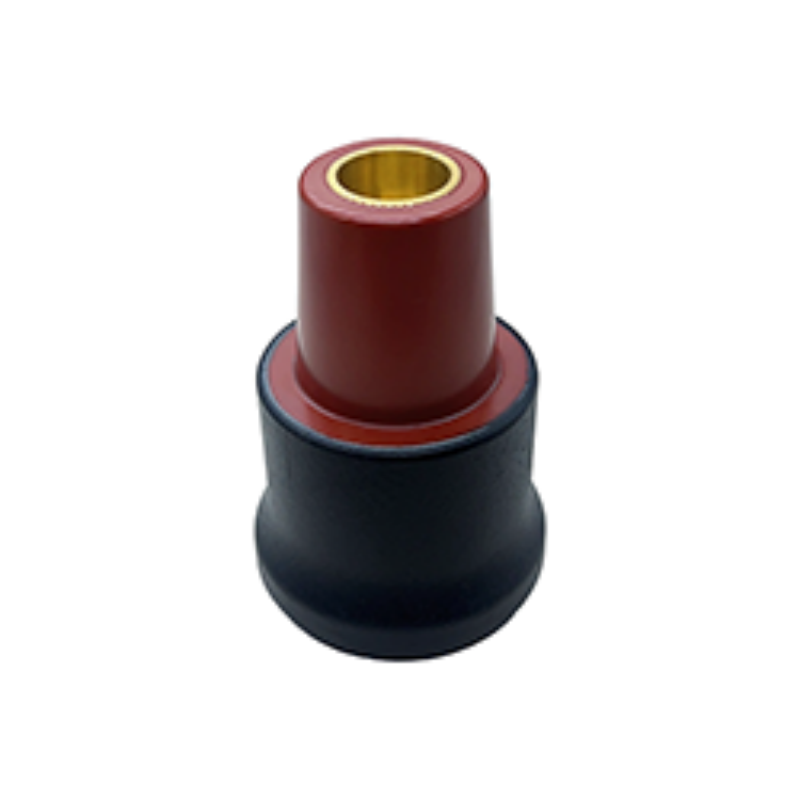

Electronic voltage sensor bushings are precision-engineered components designed for real-time voltage measurement, superior electrical insulation, and optimized energy monitoring. Used in high-voltage equipment, they ensure stable signal transmission, extended durability, and reliable system protection.
Product Overview
The Electronic Voltage Sensor Bushing uses the capacitive voltage divider principle (U2/U1 = C2/C1) to provide stable and reliable low-voltage signals, which are used for online voltage measurement, metering, fault diagnosis, and protection of power grid equipment. The sensor utilizes low temperature drift, wide-band dielectric ceramic materials to ensure its precision under extreme temperatures (-40°C to +70°C) and various electromagnetic environments. The product is packaged using resin technology, ensuring that the ceramic capacitor and resin bond properly, which enhances product reliability and reduces procurement costs.
Features
- Capacitive Voltage Divider Principle: Utilizes capacitive voltage divider for stable voltage signal acquisition, enabling precise measurement of grid voltage.
- High Precision: Available in multiple precision levels such as 0.2, 0.5, and 1.0 to meet different environmental and voltage requirements.
- Low Temperature Drift: Made from low temperature drift dielectric ceramic materials, suitable for a wide temperature range to ensure long-term stable operation.
- Wide Frequency Band Design: Adapts to various electromagnetic environments for voltage signal collection, ensuring measurement accuracy.
- Resin Packaging: Resin packaging enhances the strength of the bond between the ceramic capacitor and resin, eliminating issues related to shrinkage rate differences.
- High Voltage Endurance: Can withstand high voltage impacts up to 65kV, ensuring safe operation of the equipment.
- Low Partial Discharge: Partial discharge is less than 10pC, ensuring interference-free signal transmission.
Applications
- Power Systems: Widely used in voltage monitoring and protection for grid equipment, transformers, and switchgear.
- Distribution Systems: Used for voltage measurement, fault diagnosis, and monitoring in distribution lines.
- Smart Grids: Suitable for voltage monitoring and data collection in smart grids.
- Online Power Equipment Monitoring: Used for real-time voltage monitoring and data analysis of high-voltage equipment and distribution facilities.
- Power Automation Systems: Provides voltage measurement for power automation systems, supporting fault diagnosis and protection control.
| Parameter | Value |
| Rated Voltage | 13.8KV |
| Withstand Voltage | 65KV (5 minutes) |
| Lightning Impulse | 130KV |
| Nominal Capacity | 120PF |
| Capacitance Tolerance | ±5% |
| Temperature Coefficient | 0.2% (-40~+70℃) |
| Partial Discharge | < 10pC |
