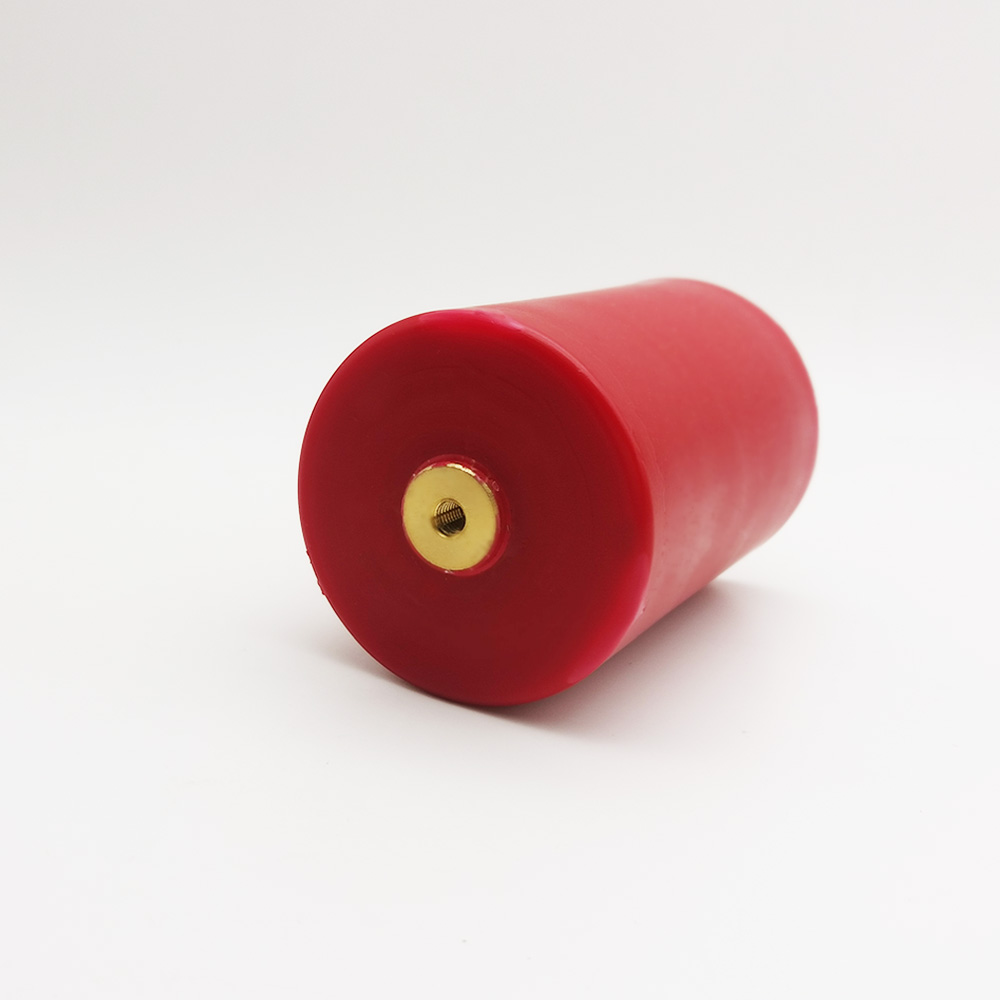

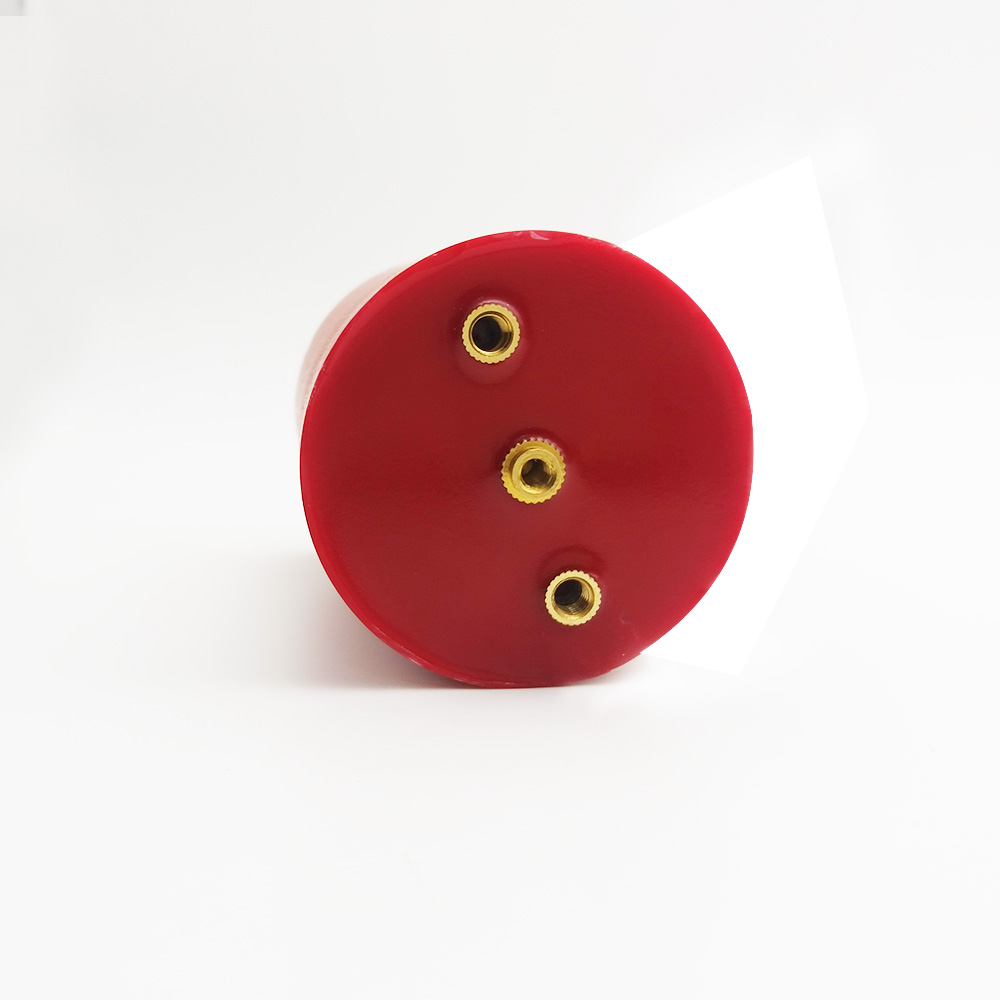

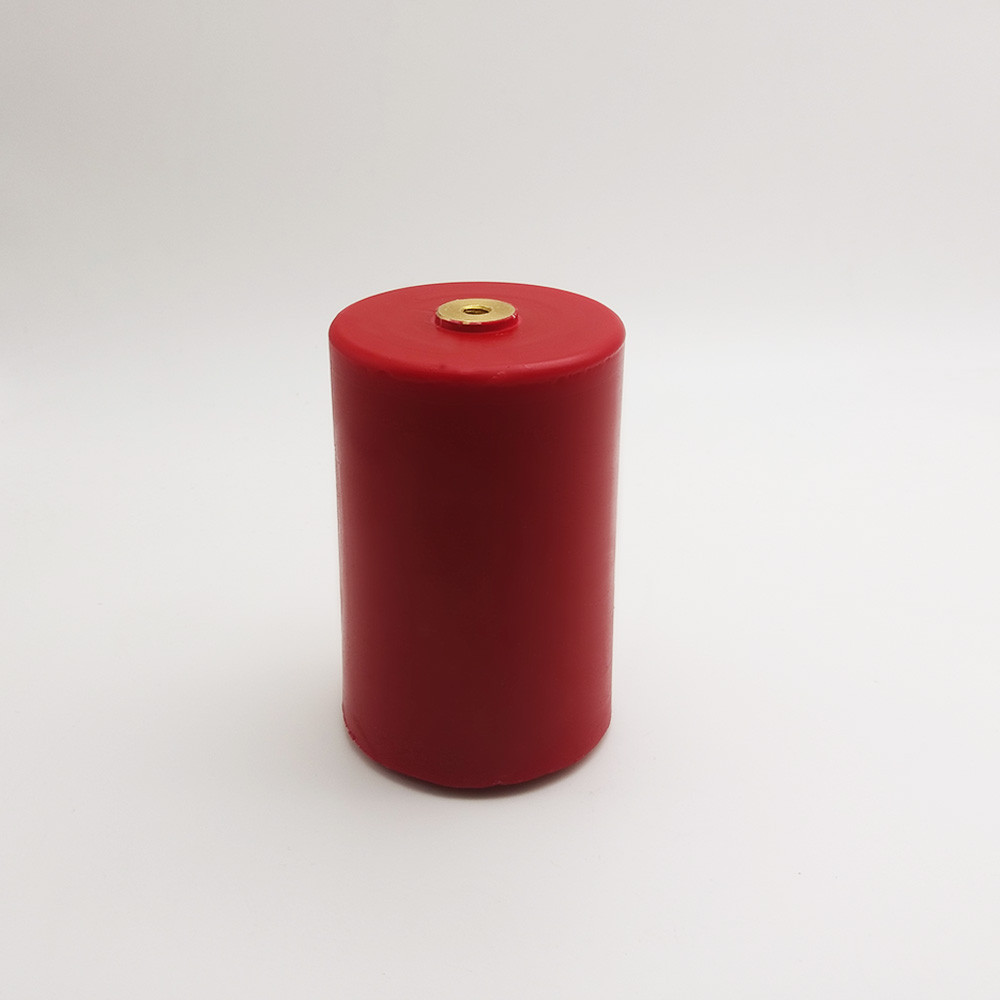

Cylindrical 10KV Zero-Sequence Transformer

Product Overview

The Cylindrical 10KV Zero-Sequence Transformer adopts the capacitive voltage divider principle, combined with a temperature-stable ceramic dielectric GC. This transformer is mainly used in 12KV power systems such as pole-mounted switches, ring main units, and other equipment. It effectively realizes zero-sequence voltage measurement and protection.

Features

• Capacitive Voltage Divider Principle: High-voltage ceramic capacitors are embedded within the transformer, operating via the capacitive voltage divider principle to ensure precise measurement and protection functionality.
• High Stability Materials: Uses temperature-stable ceramic dielectric GC, providing excellent temperature adaptability to ensure stable operation in various environments.
• High Reliability: The connection between high-voltage and low-voltage capacitors ensures efficient zero-sequence voltage measurement, with strong anti-interference capabilities.
• Compact Design: The transformer features a compact design, making it suitable for use in power equipment with limited space, simplifying installation and maintenance.
• High Voltage Endurance: Designed for 10KV systems, it can withstand high-voltage conditions and operate stably in such environments.

Applications

• Power System Protection: Used in 12KV pole-mounted switches, ring main units, and other power equipment for zero-sequence voltage protection.
• Power Metering and Protection: Widely applied in power equipment, providing precise zero-sequence voltage measurement and protection to ensure the safe operation of power systems.
• Substations and Distribution Equipment: Used in substations and distribution systems for voltage monitoring and protection, ensuring the safety of equipment operation.
• High-Voltage Power Equipment: Ideal for various high-voltage power equipment, serving as a key component for zero-sequence voltage protection and measurement.
