The 10KV high-voltage power extraction device enables efficient energy transfer and optimized power regulation for industrial and electrical grid applications. Designed for high-performance voltage management, it ensures stable operation, minimal energy loss, and long-term durability.
Product Overview

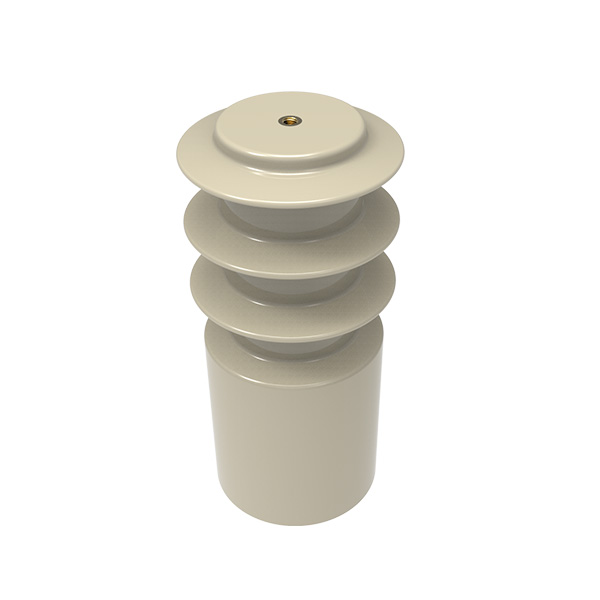

The 10KV High Voltage Power Extraction Device is an outdoor power unit designed specifically for low-voltage power supply in high-voltage power systems. With epoxy resin encapsulation, it features a high-voltage input terminal and a low-voltage output terminal, making it suitable for various power facilities. The high-voltage input terminal supports single-phase input, with a low-voltage output and grounding terminal located at the bottom. The output voltage can be customized based on user requirements. This device can convert high-voltage power into stable low-voltage power, with features such as high-voltage tolerance, lightning surge voltage protection, and more, ensuring long-term stable operation of the equipment.
Features
- High Voltage Tolerance Design: The input voltage can reach up to 10KV/√3, with a withstand voltage of 42KV AC, suitable for high-voltage environments.
- Customizable Output: Offers output voltages ranging from 5V to 24VDC, with various options based on user needs.
- High Lightning Surge Tolerance: Lightning surge voltage withstand capability of up to 75KV, ensuring stability under severe weather conditions.
- High Capacitance: Utilizes a 5000PF capacitor to provide strong electrical support, adaptable to high-voltage environments.
- Compact Structure: Epoxy resin encapsulation design offers excellent insulation and anti-interference performance.

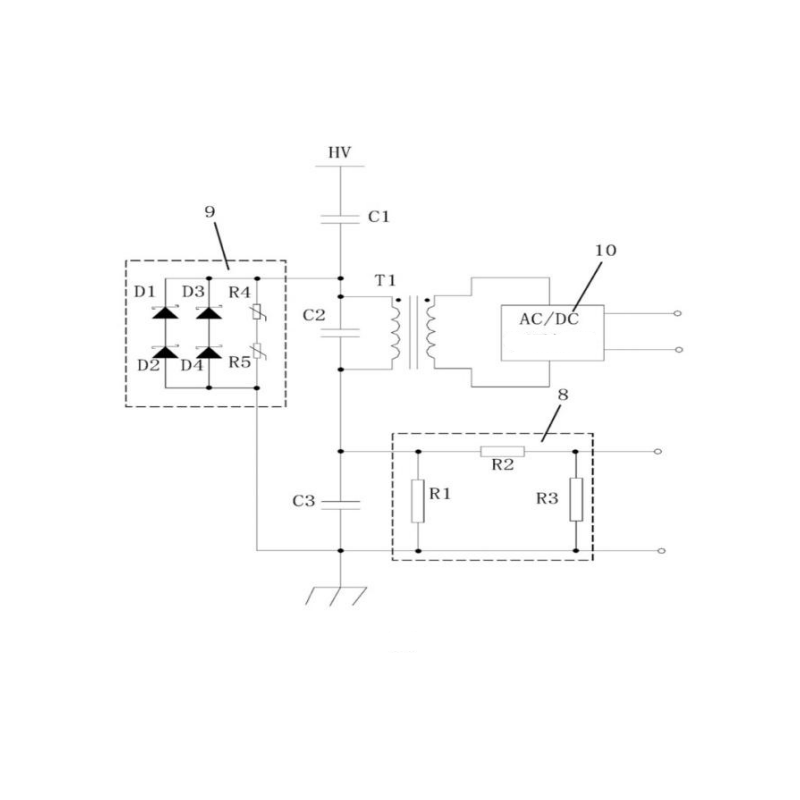

- Safety Assurance: Built-in multiple protection mechanisms, including isolation transformers and resistance protection, effectively preventing power fluctuations.
Applications
- Power Systems: Widely used in 10KV power systems to provide stable low-voltage power to electrical equipment.
- Outdoor High-Voltage Power Facilities: Suitable for high-voltage lines, substations, and other locations, offering reliable power supply.
- Automation Control Equipment: Used for power conversion in electrical automation equipment to ensure stable system operation.
- Industrial Equipment: Suitable for industrial devices requiring high-voltage conversion, such as power meters, sensors, etc.
- Smart Grid: Serves as the power supply for power data acquisition equipment, supporting smart grid systems.
| Item | Value |
| Rated Input Voltage | 10 kV / √3 |
| Output Voltage | 5~24 VDC (or specified) |
| Withstand Voltage | 42 kV AC |
| Lightning Impulse Voltage | 75 kV |
| High Voltage Side Capacitor Capacitance | 5000 pF (±10%) |
