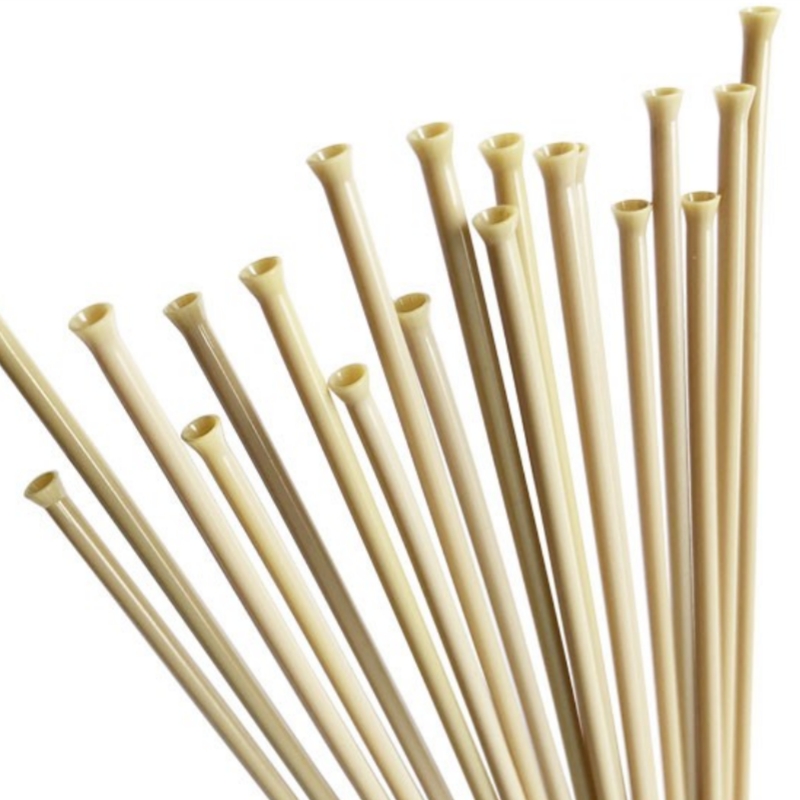

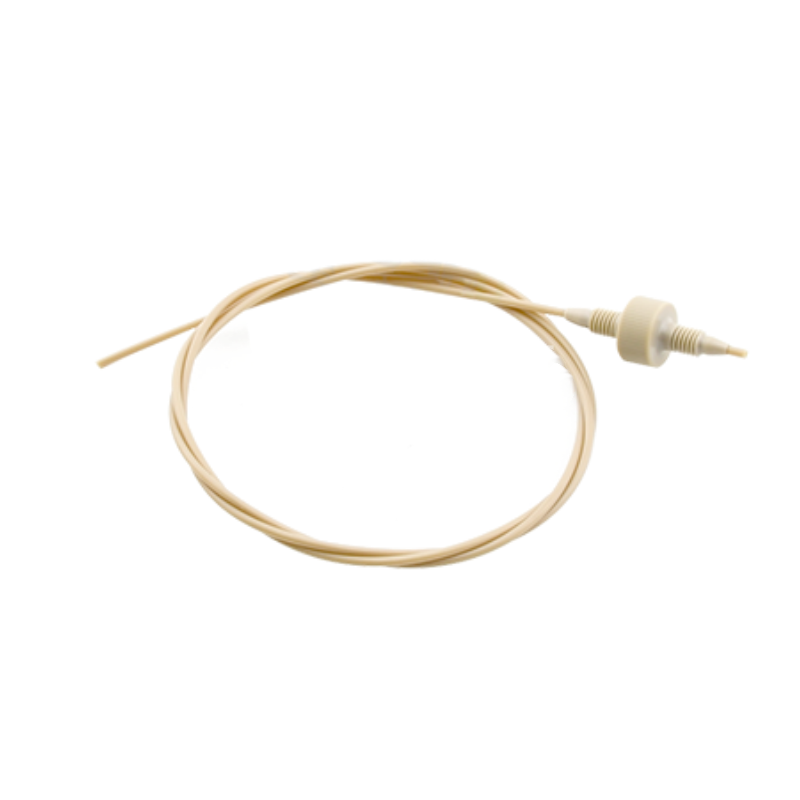

PEEK Filaments & Capillary Tubes are high-performance polymer components designed for exceptional thermal stability, chemical resistance, and mechanical durability. They are widely used in aerospace, medical, automotive, and industrial applications requiring precision fluid transport and structural reinforcement.
Product Overview
PEEK filaments and capillary tubes are manufactured from high-performance polyetheretherketone (PEEK) material, offering exceptional properties such as high-temperature resistance, corrosion resistance, and hydrolysis resistance. These products can operate at temperatures up to 260°C, maintaining stability in high-temperature and solvent environments. Due to PEEK's excellent hydrolysis resistance, these filaments and tubes can be sterilized and cleaned in high-temperature steam. Furthermore, PEEK material complies with the U.S. FDA food-grade hygiene standards, making it safe and environmentally friendly. The flame-retardant characteristics of PEEK filaments and capillary tubes make them ideal for use in industries where high temperature, corrosion resistance, and hydrolysis resistance are required.
Key Features
- High Temperature Resistance: PEEK filaments and capillary tubes can operate continuously in environments up to 260°C, suitable for high-temperature applications.
- Corrosion Resistance: These products offer excellent chemical resistance, allowing them to function in various solvent environments.
- Hydrolysis Resistance: PEEK material has strong hydrolysis resistance, making these filaments and tubes ideal for cleaning and sterilizing in high-temperature steam, ensuring long service life.
- Environmental Friendliness: Complies with U.S. FDA food-grade standards, making it safe for use in food processing and medical applications.
- Flame Retardancy: PEEK has good flame-retardant properties, ensuring safe usage in high-temperature environments.
- Good Mechanical Properties: These products possess high strength and rigidity, capable of withstanding substantial pressure and load.
Applications
- Food and Medical Industries: Compliant with FDA food-grade standards, ideal for use in food processing and medical equipment.
- Chemical Industry: In chemical, pharmaceutical, and other industries, PEEK filaments and capillary tubes are used in corrosion-resistant pipelines and transfer devices.
- Electronics and Electrical: Suitable for manufacturing electronic components, insulators, and other parts.
- Aerospace: In high-temperature and high-pressure environments, PEEK filaments and capillary tubes are used in aerospace equipment.
- Laboratories and Analytical Equipment: Used in laboratories for liquid transport, sample analysis, and piping systems.
- High-Temperature Applications: Due to their excellent high-temperature performance, these products are well-suited for various engineering applications in extreme conditions.
| Product Name | PEEK Filament |
| Product Specifications | Ф0.1mm, Ф0.15mm, Ф0.2mm, Ф0.25mm, Ф0.3mm, Ф0.4mm, Ф0.5mm, Ф1mm, Ф1.5mm, Ф1.75mm, Ф2mm, Ф2.5mm, Ф3mm, Ф4mm |
| OD (mm) | ID (mm) | Tolerances (mm) | |
| OD | ID | ||
| 1.59 (1/16”) | 0.06 (0.0025”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.10 (0.004”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.13 (0.005”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.18 (0.007”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.25 (0.010”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.33 (0.013”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.38 (0.015”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.51 (0.020”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 0.76 (0.030”) | ±0.03 | ±0.03 |
| 1.59 (1/16”) | 1.02 (0.040”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.06 (0.0025”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.10 (0.004”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.13 (0.005”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.18 (0.007”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.25 (0.010”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.38 (0.015”) | ±0.03 | ±0.03 |
| 0.79 (1/32”) | 0.51 (0.020”) | ±0.03 | ±0.03 |
| 3.175 (1/8”) | 1.57 (0.062”) | ±0.03 | ±0.03 |
| 3.175 (1/8”) | 2.03 (0.080”) | ±0.03 | ±0.03 |
