Product Overview

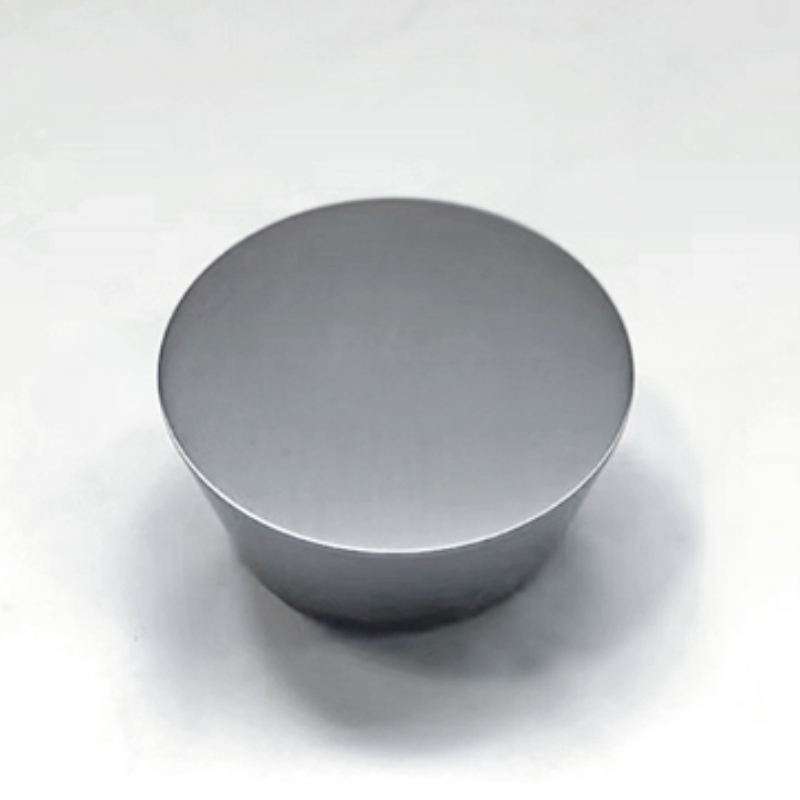

Tantalum frustum is a high-performance, high-temperature-resistant container made from high-purity tantalum. Known for its excellent resistance to deformation and high-temperature stability, tantalum is a metal with an exceptionally high melting point, low vapor pressure, and superior cold-working and chemical stability. Tantalum frustums are widely used in high-temperature and corrosive environments, particularly in metallurgy, chemical, and electronics industries.
Features
- Excellent temperature resistance, suitable for extreme temperature conditions
- Exceptional corrosion resistance, particularly against molten metals and chemicals
- Outstanding cold-working properties and high dielectric constant of surface oxide film
- High-purity tantalum ensures stable and reliable performance
Applications
- Rare Earth Smelting: Tantalum frustums are used in the rare earth element smelting process, where high-temperature and corrosion resistance are critical for complex chemical reactions
- High-Temperature Sintering: Used as an anode carrier to maintain the stability and efficiency of electrolytic capacitors during high-temperature sintering
- Chemical Industry: Tantalum frustums serve as corrosion-resistant containers for storing and processing various corrosive chemicals
- Sputtering and Vapor Deposition: Provide a stable platform for reactions during surface modification, ensuring clean and stable surfaces
| Item | Tantalum Crucible |
| Material | Ta≥99.95% (R05200, R05400) |
| Standard | ASTM |
| Density | ~16.6 g/cm³ |
| Surface | Precision machining, polishing |
| Dimensions | 10-500mm outer diameter x 10-500mm length |
| Diameter (mm) | Wall Thickness (mm) | Height (mm) |
| 30～50 | 2 ~ 10 | 30～500 |
| 50～100 | 3～15 | |
| 100～150 | 3～15 | |
| 150～200 | 5～20 | |
| 200～300 | 8～20 | |
| 300～400 | 8～30 | |
| 400～450 | 8～30 | |
| 450～500 | 8～30 |
