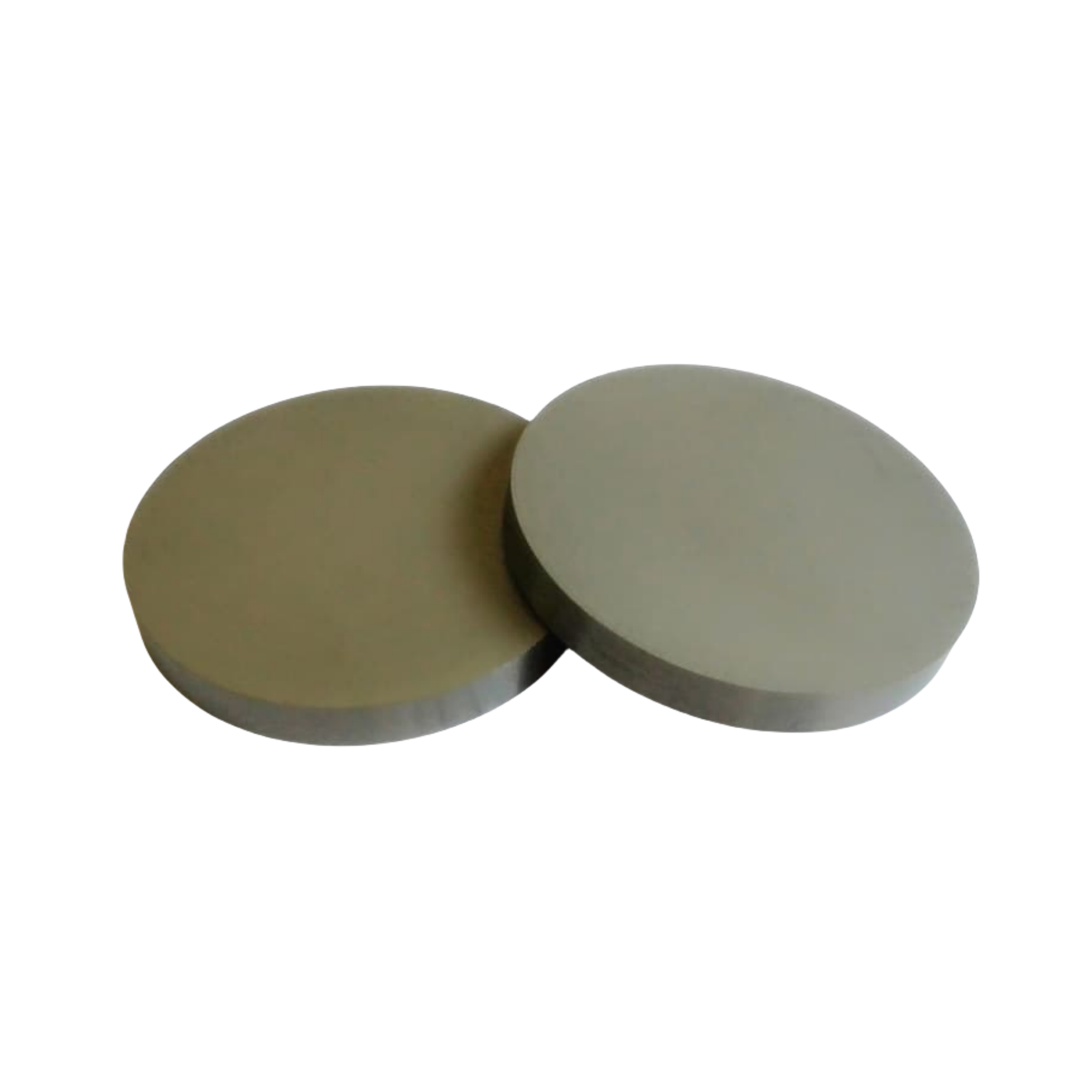

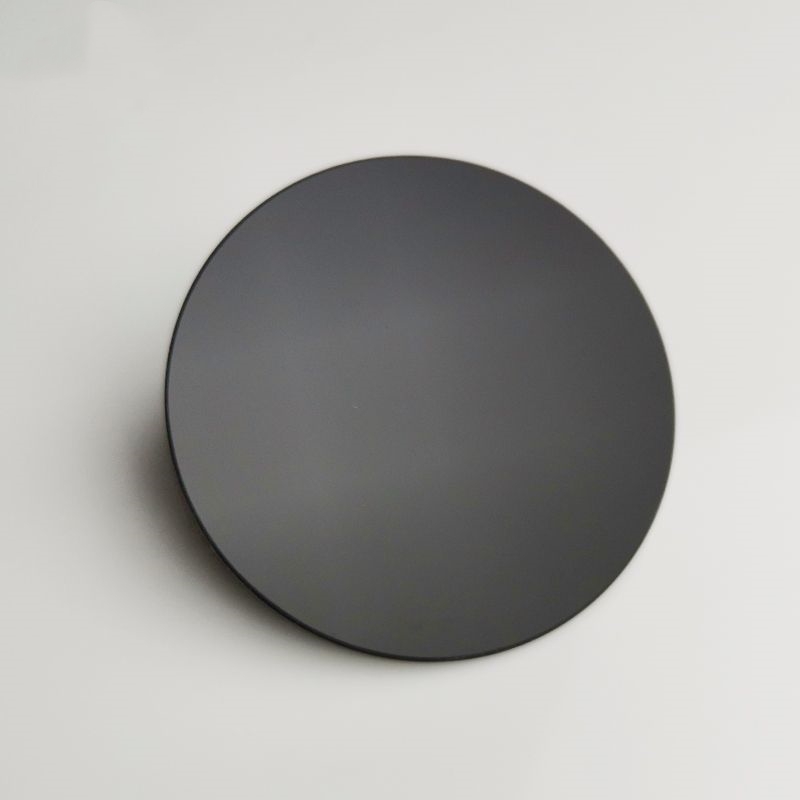

Germanium Target

element：Ge
purity：99.999%
shape：Planar Target, Rotatable Target
specification：D50.8 × 3.175 mm (customizable according to drawings)
packaging：Triple vacuum-sealed or argon-filled protective packaging, compliant with IATA and DOT regulations

Germanium target is a high-purity material used in various industrial applications, including thin film deposition, semiconductor production, and infrared optics. It is known for its excellent optical properties, thermal conductivity, and unique characteristics.

Inquire

Add WhatsApp

WhatsApp：+86 17737118570E-mail：sales@wobomaterials.com

Add WeChat

WeChat：+86 17737118570Phone：+86 3733071686

Product Description
Specifications

Product Overview

The high-purity germanium target is manufactured from 99.999% pure germanium. It has a gray-white appearance and exhibits the hard and brittle characteristics of a semi-metal. With a density of 5.35 g/cm³ and a melting point of 937°C, it offers excellent stability and adaptability to various deposition processes. Germanium targets are indispensable in the production of optical thin films, especially for infrared and high-performance optical components.

Features

Ultra-High Purity: Ideal for precise optical and high-tech applications.
Stable Semiconductor Properties: Reliable performance for demanding environments.
Industry-Compliant Packaging: Ensures safe handling and transportation according to international standards.

Applications

Optical Thin Films: Used in the deposition of germanium films for infrared optical components, especially in the 8–14 µm wavelength range.
Thermal Imaging: Core material for thermal imaging optical elements, including passive thermal imagers, night vision devices, and firefighting thermal detectors.
Infrared Spectroscopy: Essential for high-sensitivity infrared detectors.
Precision Optical Equipment: Widely applied in military, mobile night vision, and industrial inspection devices.
Other Applications: Serves as an additive for specialized alloys and as a chemical catalyst in certain processes.

Element	Measured Value	Standard Value	Unit	Element	Measured Value	Standard Value	Unit	Element	Measured Value	Standard Value	Unit
Li	<0.001		ppm	Zn	<0.005		ppm	Pb	<0.005		ppm
B	<0.001		ppm	Ga	<0.01		ppm	Bi	<0.005		ppm
F	<0.05		ppm	Ge	Matrix		wt%	Y	<0.01		ppm
Na	<0.005		ppm	As	<0.1		ppm	Th	<0.001		ppm
Mg	<0.005		ppm	Se	<0.05		ppm	Er	<0.005		ppm
Al	<0.005		ppm	Zr	<0.01		ppm	Ru	<0.005		ppm
Si	0.14		ppm	Nb	<0.005		ppm	Rb	<0.005		ppm
P	<0.005		ppm	Mo	<0.01		ppm	Sr	<0.005		ppm
Cl	<0.1		ppm	Pd	<0.01		ppm	Sc	<0.001		ppm
K	<0.05		ppm	Ag	<0.01		ppm	Be	<0.001		ppm
Ca	<0.01		ppm	Sn	<0.05		ppm	Rh	<0.005		ppm
Ti	<0.001		ppm	Sb	<0.05		ppm	Cd	<0.1		ppm
V	<0.001		ppm	Ba	<0.01		ppm
Cr	<0.005		ppm	Hf	<0.005		ppm
Mn	<0.05		ppm	Ta	Source		ppm	C			ppm
Fe	<0.05		ppm	W	<0.005		ppm	S	<0.005		ppm
Co	<0.001		ppm	Pt	<0.005		ppm	O			ppm
Ni	<0.005		ppm	Au	<0.05		ppm	N			ppm
Cu	<0.005		ppm	Hg	<0.005		ppm	H			ppm
