Y5U material high-voltage ceramic disc capacitors provide high capacitance density, excellent insulation, and reliable performance in demanding electrical applications. Designed for industrial circuits and voltage regulation, they offer stable functionality and extended durability for power systems.
Product Overview

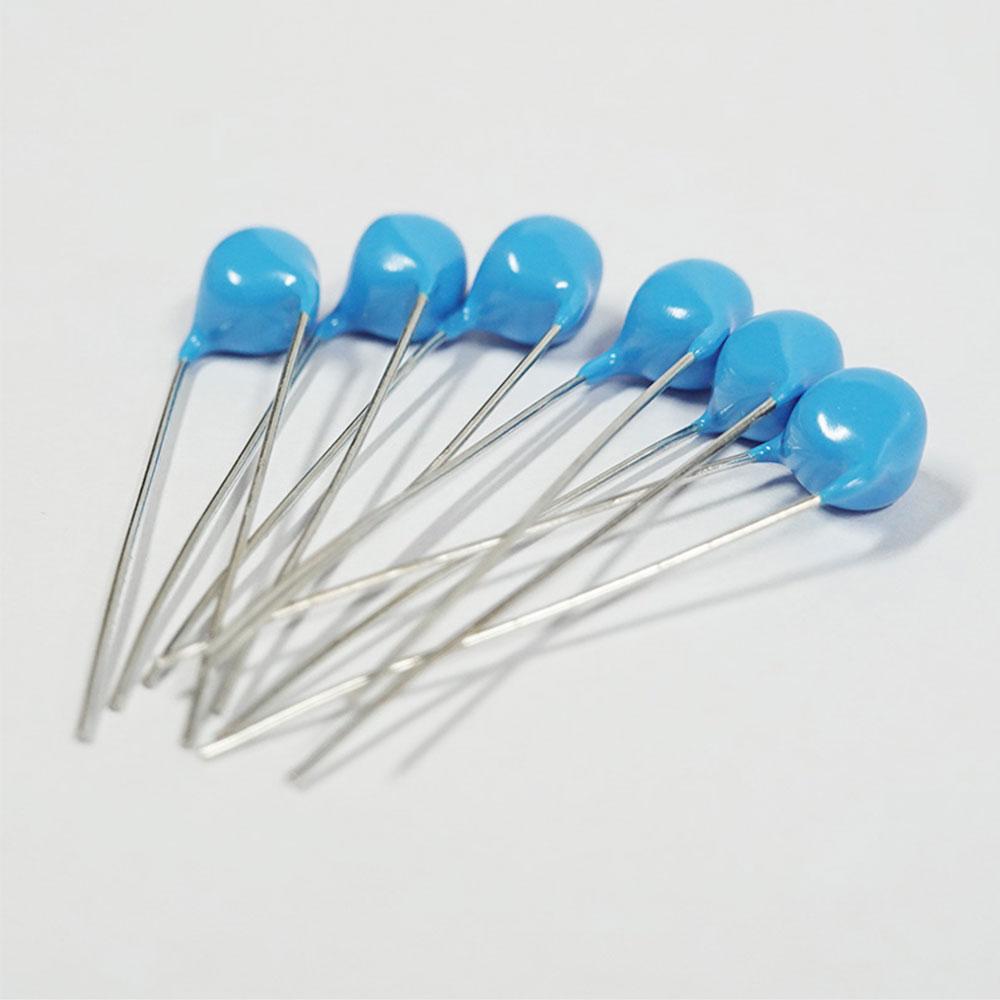

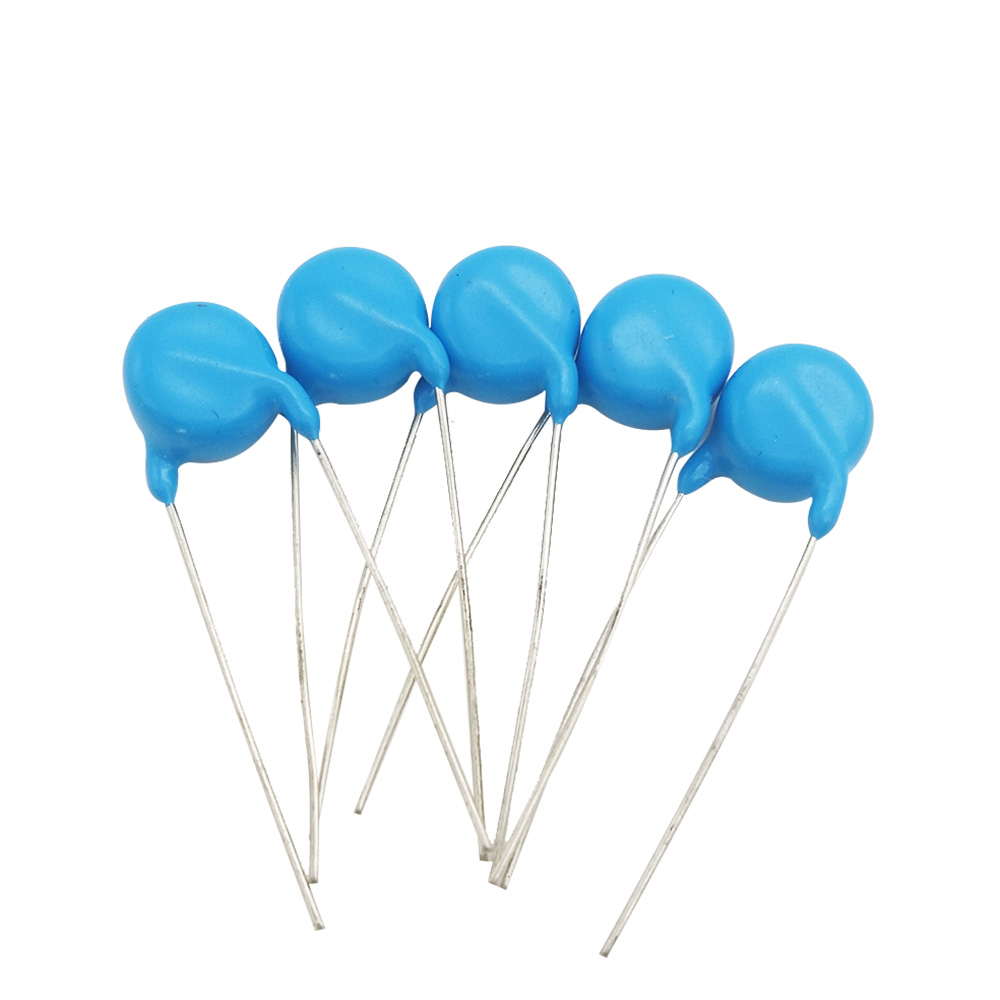

The Y5U Material High-Voltage Ceramic Disc Capacitor is made from high-quality Y5U ceramic material, specifically designed for high-frequency and high-voltage power applications. It is widely used in laser pulse systems, high-voltage power supplies, and X-ray machine power supplies. This capacitor features excellent electrical performance, including low loss, superior high-frequency characteristics, and high-voltage endurance. Its high insulation resistance and long lifespan make it highly effective in complex environments, meeting the demands of various high-current and high-voltage applications.
Features
- Low Loss: Loss factor as low as 1% at 1 kHz, ensuring efficient energy transmission.
- Excellent High-Frequency Performance: Suitable for operating conditions with frequencies ≥100 kHz, supporting high-frequency applications.
- High Current Endurance: Capable of withstanding currents greater than 15 mA, suitable for high-current environments.
- Superior High-Voltage Endurance: Can withstand up to twice the rated voltage, suitable for harsh operating conditions.
- High Insulation Resistance: Insulation resistance greater than 100,000 MΩ, ensuring safe and stable electrical isolation.
- Long Lifespan: The product offers a lifespan of over 10 years, ensuring long-term reliability and stability.
Applications
- High-Frequency High-Voltage Power Supplies: Widely used in high-frequency and high-voltage power supply systems, providing stable voltage support.
- Laser Pulse Systems: Used in CO₂ lasers and high-voltage pulse generators, ensuring stable pulse output.
- X-Ray Machine Power Supplies: Suitable for X-ray machine power supply systems, providing stable voltage and current support.
- Non-Destructive Testing: Ensures stable electrical performance in non-destructive testing equipment.
- Airport Security Equipment: Used in airport security equipment, providing efficient power support.
- Negative Ion Products: Widely used in negative ion products and air purifiers, ensuring efficient operation.
| Parameter | Range |
| Ceramic Dielectric | Y5U |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥10000 MΩ |
| Dielectric Loss | ≤2% |
| Temperature Characteristics | +22%~56% |
