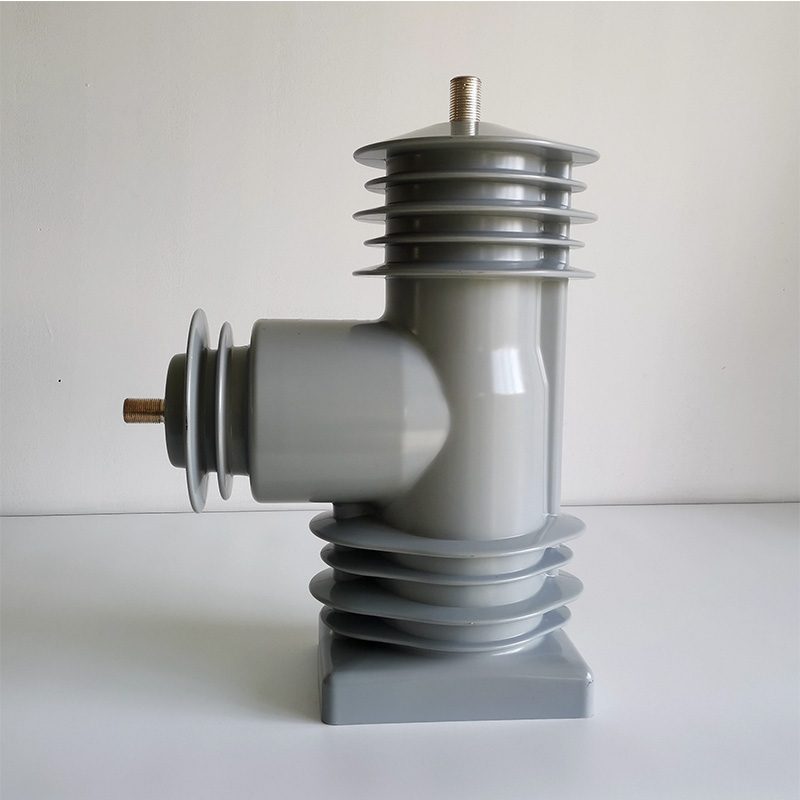

Vacuum Circuit Breaker Pole (Deep Integration)

Product Overview

The vacuum circuit breaker pole (deep integration) is an innovative product designed for high-voltage power systems. It integrates multiple sensors and power monitoring modules into one system. The product features a bulging structure with the flexibility to install voltage sensors either pre-assembled or post-assembly. By integrating zero-sequence voltage, phase-sequence voltage, zero-sequence current, and phase-sequence current sensors, along with a power extraction device, it enables real-time monitoring of various electrical parameters in power systems. This device is ideal for precise monitoring and control of current and voltage, especially in high-voltage power equipment, ensuring system safety and stability.

Features

• Deep Integration Design: Multiple sensors and power monitoring modules are integrated into a single system, simplifying wiring and installation.
• Flexible Voltage Sensor Configuration: The voltage sensors can be pre-assembled or installed later, making installation and maintenance easier.
• Multi-functional Signal Integration: Integrates multiple signals, such as zero-sequence voltage, phase-sequence voltage, and current sensors, ensuring comprehensive electrical monitoring.
• Flexible Functional Options: Features like B-phase carrier communication can be added according to user needs, offering customization.
• Efficient Power Management: A 24VDC 12VA AC power extraction device with a dedicated management module ensures stable power supply.
• Centralized Secondary Signal Management: All secondary signals are integrated into a signal collector and management module, simplifying maintenance.

Applications

• High-Voltage Power Systems: Used in substations and distribution systems to efficiently monitor and control electrical parameters such as current, voltage, and phase sequence.
• Power Monitoring and Automation: Suitable for automation and monitoring of power equipment, enhancing system safety and reliability.
• Power Equipment Upgrades and Maintenance: Ideal for upgrading existing high-voltage power equipment and monitoring performance, improving efficiency and management.
• Smart Grid Construction: Applied in smart grids and power communication systems, providing accurate electrical data and real-time feedback to support intelligent decision-making.
