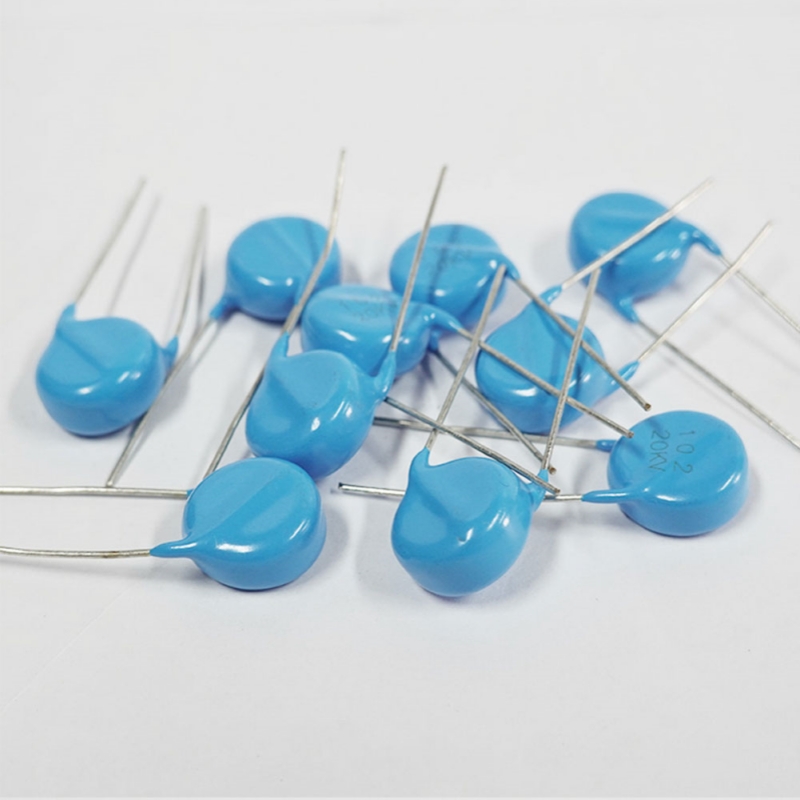

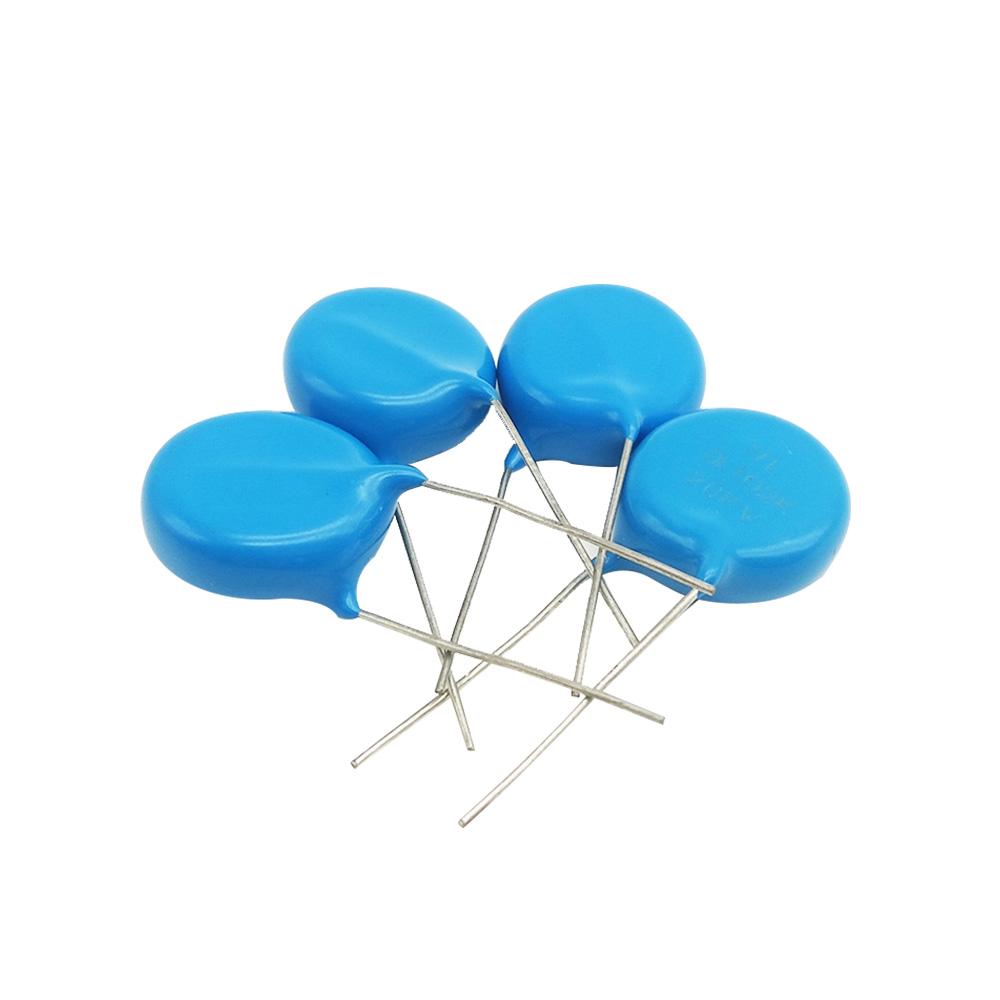

UJ Material High-Voltage Ceramic Disc Capacitor

Product Overview

The UJ Material High-Voltage Ceramic Disc Capacitor is made from advanced UJ ceramic material, which offers exceptional high-voltage withstand capability, low loss, and excellent high-frequency characteristics. This capacitor is widely used in high-voltage power supplies and high-voltage pulse systems. It is designed for electrical equipment that needs to operate stably in high-frequency, high-voltage environments, such as laser pulse generators and smart grid systems. Its outstanding electrical performance ensures long-term stable operation in high-voltage environments, making it an indispensable core component in high-voltage power supplies and high-frequency systems.

Features

• Low Loss: With a loss factor as low as 0.06% at 1 kHz, ensuring high efficiency in high-frequency environments.
• Excellent High-Frequency Characteristics: Suitable for high-frequency environments, with a working frequency of ≥100 kHz, meeting high-frequency power supply requirements.
• Superior High-Voltage Performance: Has a strong ability to withstand high voltages, capable of handling up to twice the rated voltage.
• High Insulation Resistance: Insulation resistance greater than 1,000,000 MΩ, ensuring safety and stability of the capacitor in high-voltage environments.

Applications

• High-Voltage Power Supplies: Used in high-voltage power systems, providing stable high-voltage support.
• Laser Pulse Systems: Applied in gas lasers and high-voltage pulse generators, ensuring stable pulse output.
• Smart Grid: Used in smart grid systems, providing efficient capacitance support to ensure stable power transmission and distribution.
