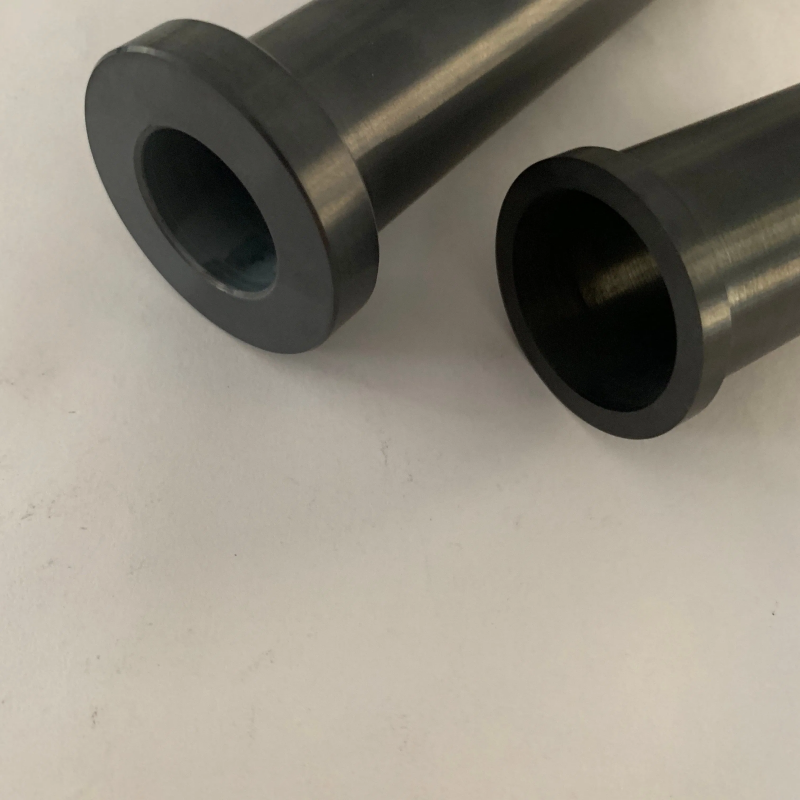

Silicon nitride ceramic flanged tubes are high-performance insulation components designed for applications requiring extreme heat resistance, optimized structural integrity, and superior wear protection. Manufactured through advanced sintering and precision machining, these ceramic tubes offer excellent thermal insulation, corrosion resistance, and mechanical durability. They are widely used in high-temperature industrial processes, thermocouple protection systems, aerospace components, and semiconductor manufacturing, ensuring long-lasting efficiency under harsh operating conditions.
Product Overview
The silicon nitride ceramic flanged tubes (high-temperature insulation ceramic protection tubes) are made from high-purity silicon nitride (Si₃N₄) ceramics, offering outstanding resistance to high temperatures, wear, and chemical corrosion. These components are designed for use in industrial piping systems operating under extreme conditions. The design includes two flanges with multiple mounting holes, facilitating installation and ensuring stability and safety under high-temperature or high-pressure conditions. The superior properties of silicon nitride ceramics make these tubes an ideal choice for demanding applications.
Features
- Structural Design: The silicon nitride ceramic flanged tubes feature a design with two flanges and multiple mounting holes, making them easy to install in large piping systems. This ensures stability and safety during high-pressure or high-temperature operations.
- High-Performance Material: Silicon nitride ceramics provide excellent heat resistance, wear resistance, and chemical corrosion resistance. Their low coefficient of thermal expansion (3.1 × 10⁻⁶/°C) and high thermal conductivity (15-20 W/(m·K)) help maintain the stability and structural integrity of the tubes during frequent thermal cycles.
- Wear Resistance and Impact Resistance: With a Vickers hardness of up to 1500 HV and compressive strength up to 2500 MPa, silicon nitride ceramics provide exceptional wear and impact resistance, ensuring long-lasting durability under extreme operational conditions.
Applications
- Chemical Processing: Used in the chemical industry, especially for transporting corrosive chemicals. The chemical resistance and high-temperature performance ensure reliability when handling corrosive substances like acids and bases.
- Petroleum Refining: Suitable for use in petroleum and natural gas refining processes, providing essential protection and insulation under high-temperature and high-pressure environments, preventing material degradation and system failures.
- Advanced Materials Manufacturing: Used in high-temperature material processing and advanced manufacturing applications to protect critical components, especially in high-temperature furnaces and reactors, ensuring process stability and efficiency.
