new material

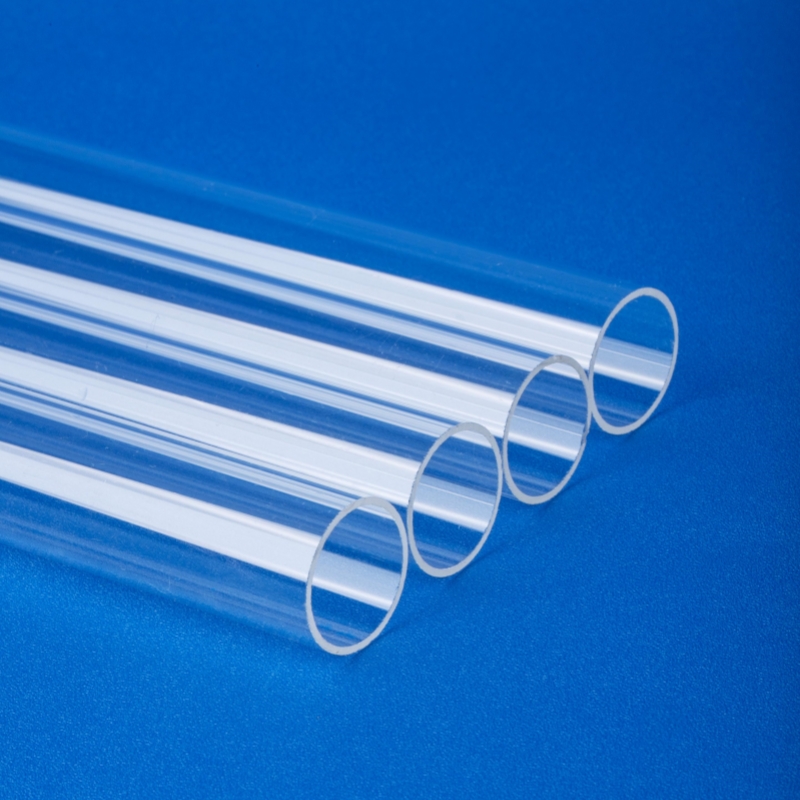

Ozone quartz tube is a high-purity quartz component designed for efficient ozone generation, superior thermal resistance, and optimal chemical stability. Manufactured using advanced fusion techniques, it ensures minimal thermal expansion, excellent durability, and precise optical transmission for specialized applications. This material is widely used in ozone generators, sterilization systems, water purification, semiconductor fabrication, and industrial processing, providing reliable performance in environments requiring controlled ozone production.
Product Overview
The ozone quartz tube is made from high-purity quartz sand and processed using high-temperature dehydroxylation techniques. The hydroxyl content is controlled to be below 5 ppm, ensuring exceptional performance in high-ozone environments. This quartz tube can be customized to offer different ozone concentrations based on customer requirements, including concentrations over 50 ppm, 20-40 ppm, or 10-20 ppm, in accordance with international industry standards. Its outstanding optical properties and stability make it widely used in ultraviolet (UV) irradiation and sterilization applications.
Key Features
- High Purity: Made from high-purity quartz sand, ensuring the tube's stability and long-term performance in high-ozone environments.
- Low Hydroxyl Content: The high-temperature dehydroxylation process controls the hydroxyl content to under 5 ppm, improving the material’s performance.
- Adjustable Ozone Concentrations: Different ozone concentrations can be provided to meet various application needs.
- International Standards Compliance: Meets international industry standards, ensuring reliability and consistency.
- High Temperature Resistance: Excellent thermal stability, suitable for high-temperature operating environments.
Applications
- High-Ozone UV Lamps: Used in the production of high-ozone UV lamps, providing strong ozone generation capabilities.
- High-Ozone Sterilization Lamps: Applied in air and water sterilization and disinfection, offering powerful sterilizing effects.
- UV Quartz Lamps: Serves as the core component in UV quartz lamps, widely used in air purification and water treatment.
- Various Sterilization Lamps: Utilized in sterilization equipment for medical, environmental, and other applications, ensuring hygiene and safety.
| Property | Value |
| SIO2 Content | 99.90% |
| Density | 2.2 (g/cm³) |
| Hardness | 6.6 |
| Melting Point | 1732°C |
| Operating Temperature | 1100°C |
| Maximum Temperature (short time) | 1450°C |
| Resistivity Coefficient | 10000 times more than ordinary glass |
| Annealing Point | 1180°C |
| Softening Point | 1630°C |
| Strain Point | 1100°C |
