Product Overview

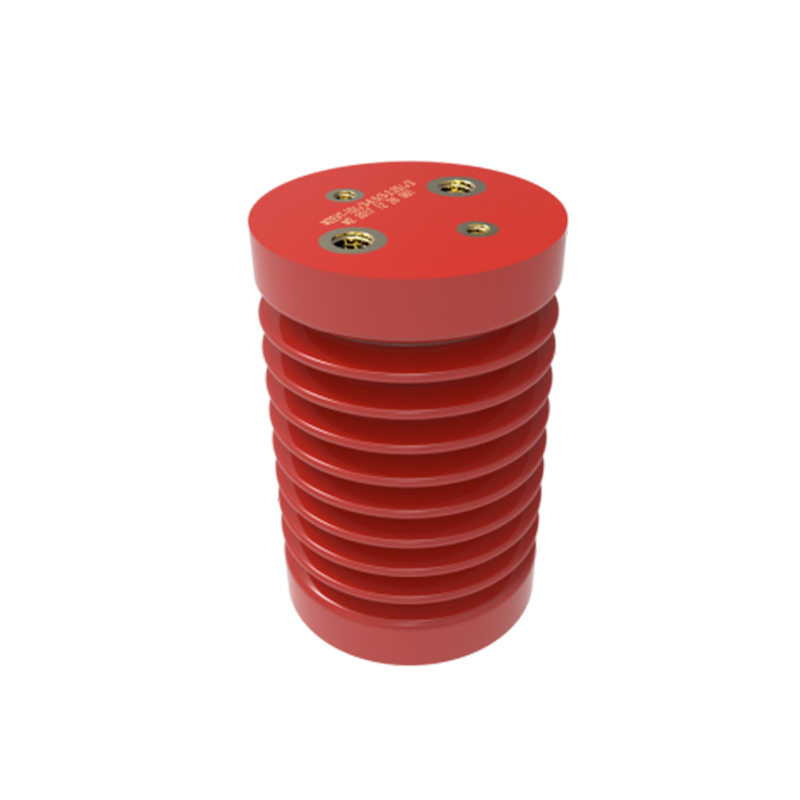

The Integrated Metering and Protection Transformer adopts the capacitive voltage divider principle. It is a new type of electronic voltage transformer, widely used in 12KV power systems, such as pole-mounted switches, ring main units, circuit breakers, and other equipment. This product integrates both zero-sequence voltage protection and voltage metering functions, offering accurate voltage measurement and protection capabilities.
Features
- Capacitive Voltage Divider Principle: Utilizes the capacitive voltage divider principle, with two sets of capacitors embedded within each transformer to serve both zero-sequence protection and voltage metering purposes.
- High Reliability: Designed in compliance with national standards, ensuring long-term stable operation in various working environments.
- Precise Voltage Measurement: Features high-precision voltage ratios, capable of accurately measuring both zero-sequence and phase sequence voltages.
- Wide Applicability: Suitable for various 12KV power equipment, meeting the protection needs of substations and distribution systems.
- High Voltage Endurance and Anti-interference: Equipped with strong anti-interference and high-voltage endurance, ensuring safe and reliable operation in high-voltage power systems.
- Simplified Installation and Maintenance: Direct signal output simplifies the system structure, reduces error sources, and makes installation and maintenance more convenient.
Applications
- Power System Protection and Metering: Widely used in 12KV power systems such as pole-mounted switches, ring main units, and circuit breakers, providing both zero-sequence voltage protection and voltage metering functionality.
- Substations and Distribution Equipment: As a key component in substations and distribution equipment, it ensures reliable operation and protection of electrical devices.
- Power Monitoring Systems: Suitable for power monitoring and automation systems, enabling online monitoring and fault diagnosis of electrical equipment.
- High Voltage Power Equipment: Ideal for protection and metering in various high-voltage power equipment, ensuring the safety and stability of the power system.
| Item | Value |
| Zero-sequence Voltage Rated Transformation Ratio | 10/√3 KV / (6.5/3) V |
| 8~12KV Voltage Transformation Accuracy | 3P |
| Phase Voltage Rated Transformation Ratio | 10/√3 KV / (3.25/√3) V |
| 8~12KV Voltage Transformation Accuracy | 0.5 |
| Operating Temperature Range | -40℃ ~ +70℃ |
| Rated Frequency | 50 Hz |
| Rated Load | 5.1 MΩ |
| System Rated Voltage | 10 KV / 12 KV |
| Partial Discharge | 5 PC @ 14.4 KV |
| Withstand Voltage | 42 KV AC, hold for 2 minutes |
| Lightning Impulse Voltage | 75 KV, positive and negative 15 times |
| Power Frequency Requirement | 48 KV @ 1 min |
| Diameter | 78 mm |
| Height | 120 mm |
| High Voltage Input Side | Screw M8 * 8 mm |
| Low Voltage Output Side | 1 grounding screw and 2 fixed screws: M10 * 12.5 mm; Zero-sequence and phase signal screws: M6 * 6 mm |
| Skirt Depth | 8.5 mm |
