High-frequency pulse ceramic capacitors are precision-engineered components designed for rapid charge and discharge cycles, superior electrical insulation, and minimal energy loss. They are widely used in pulse circuits, high-frequency applications, RF systems, and industrial power electronics for stable and reliable performance.
Product Overview

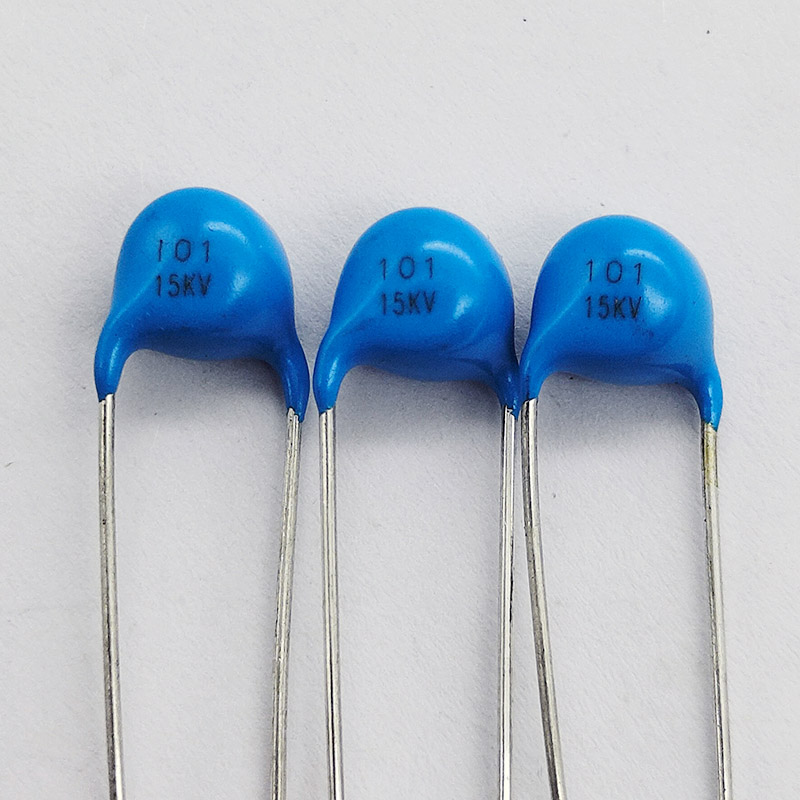

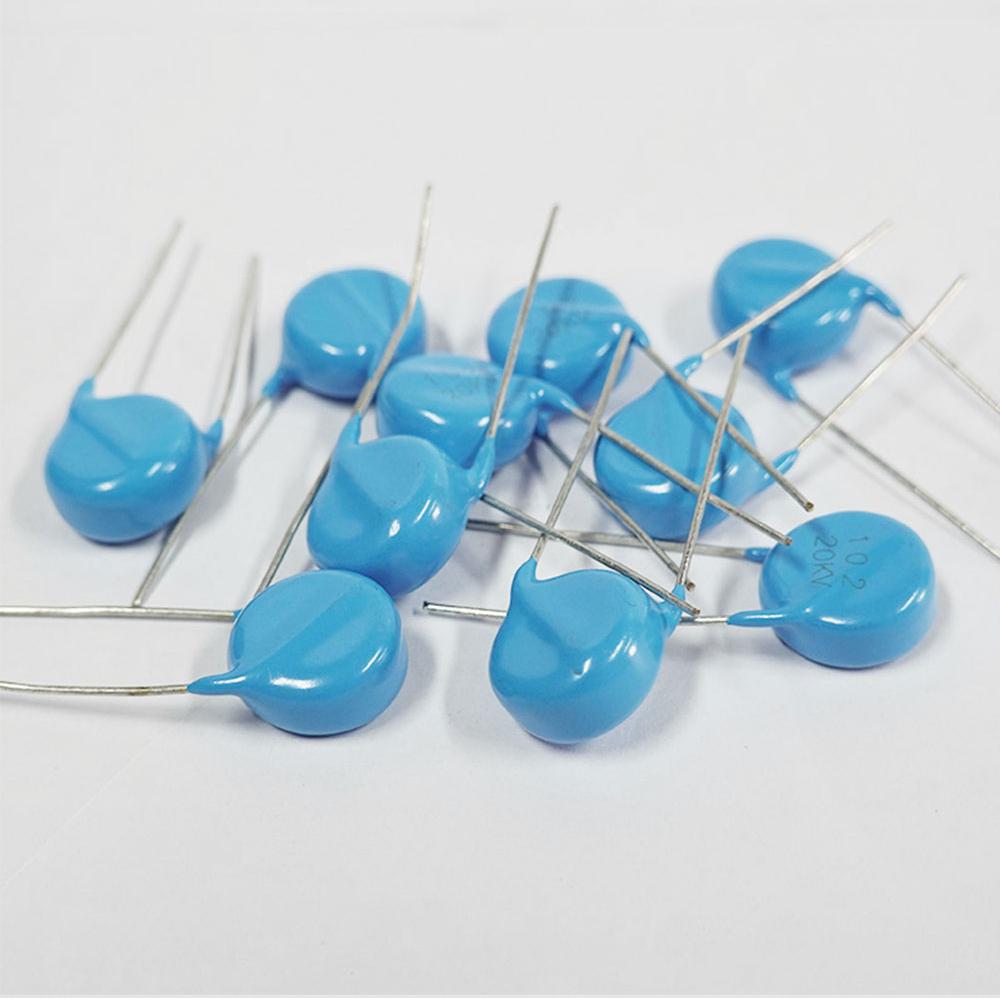

The High-Frequency Pulse Ceramic Capacitor is made from high-performance ceramic materials, designed specifically for high-voltage power supplies, laser pulse systems, and smart grid applications. Its low loss, high-frequency response, excellent high-voltage characteristics, and extremely high insulation resistance make it an ideal choice for demanding applications, providing long-term stable performance.
Features
- Low Loss: Loss factor as low as 0.06% at 1 kHz, ensuring efficient energy transfer and heat management.
- High-Frequency Characteristics: Supports high-frequency applications with frequencies reaching ≥100 kHz, suitable for high-speed signal processing.
- High Voltage Capability: Can operate stably in environments up to twice the rated voltage, suitable for high-voltage conditions.
- High Insulation Resistance: Insulation resistance ≥1,000,000 MΩ, ensuring excellent electrical isolation and safe operation.
Applications
- High Voltage Power Supplies: Used in high-voltage power systems to ensure stable voltage output.
- Laser Pulse Systems: Widely used in gas lasers and high-voltage pulse generators to meet precise control requirements.
- Smart Grid: Provides efficient power transmission and management in smart grid systems.
| Parameter | Range |
| Ceramic Dielectric | UJ |
| Operating Temperature | -25~+85 ℃ |
| Insulation Resistance | ≥1000000 MΩ |
| Dielectric Loss | ≤0.06% |
| Temperature Characteristics | ±520 PPM/℃ |
