The CVT-12-22020 power supply device ensures efficient energy conversion, optimized voltage regulation, and reliable electrical performance. Designed for industrial applications, it provides stable output, superior durability, and enhanced operational efficiency.
Product Overview

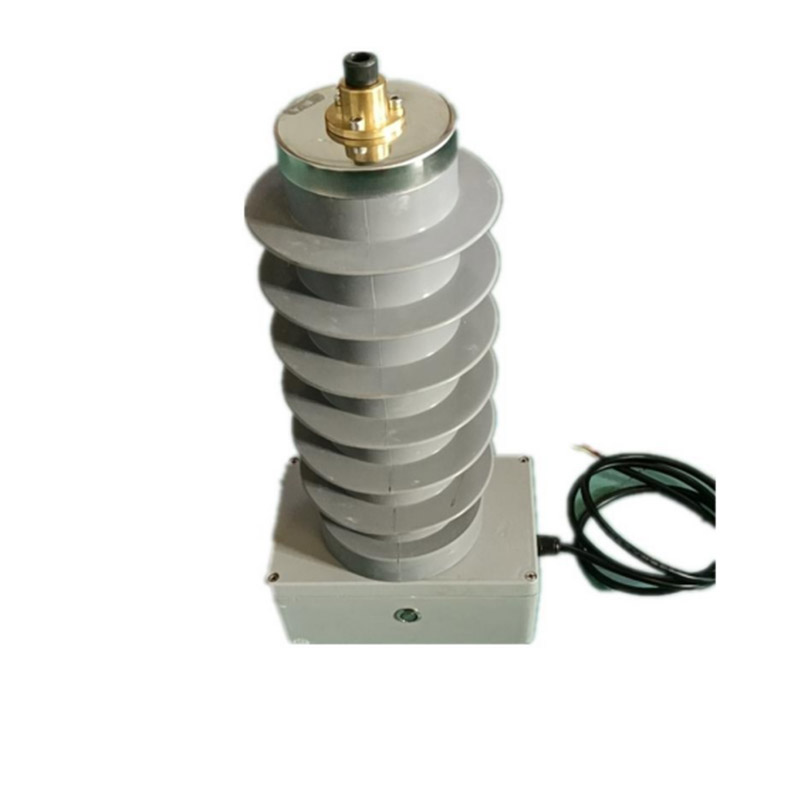

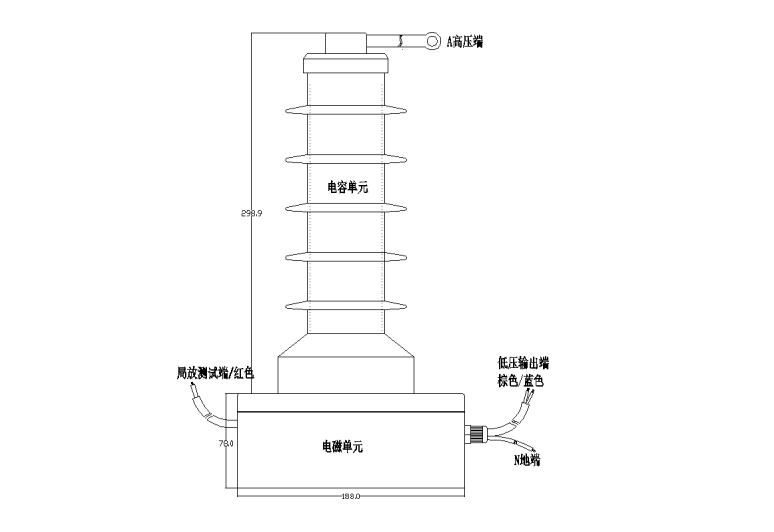

The CVT-12-22020 Power Supply Device is a power source device that directly connects to the high-voltage side (12KV) to extract power, widely used in power systems and industrial automation equipment. The device consists of a high-voltage capacitor unit, an electromagnetic unit (including a medium-voltage transformer and harmonic suppression unit), and a protection unit. It provides stable output voltage to meet the high power demands of equipment. The device is designed with high withstand voltage for both power frequency and lightning impulse, making it suitable for complex working environments.
Features
- High Voltage Adaptability: Supports high-voltage input, with strong lightning impulse withstand capability.
- Multiple Output Configurations: Offers AC or DC output, with customizable output power and voltage based on requirements.
- High Protection Level: IP68 waterproof rating ensures reliable operation in harsh environments.
- Insulation Protection: Features resin encapsulation and a metal base design, providing superior electrical insulation protection.
- Wide Operating Temperature Range: Operates in temperatures from -25°C to +70°C, adaptable to various environmental conditions.
- Compact and Durable Design: The device housing uses a metal base and resin encapsulation, providing a strong structure suitable for complex industrial applications.
Applications
- Power Systems: Used in substations, power distribution, and other high-voltage power equipment to provide stable power.
- Industrial Automation: Provides power support for monitoring and driving equipment in industrial production lines and control systems.
- Energy Monitoring: Suitable for energy monitoring, equipment control, and remote data acquisition systems.
- Emergency Power Systems: Can be used as a backup power supply during power interruptions to ensure continuous operation of critical equipment.
- Communication Equipment: Ensures stable power supply to high-voltage equipment and communication systems, guaranteeing continuous operation of communication devices.
