Precision-engineered Boron Nitride Structural Components offering exceptional thermal stability (2000°C), electrical insulation, and mechanical strength for demanding industrial applications.
Product Overview

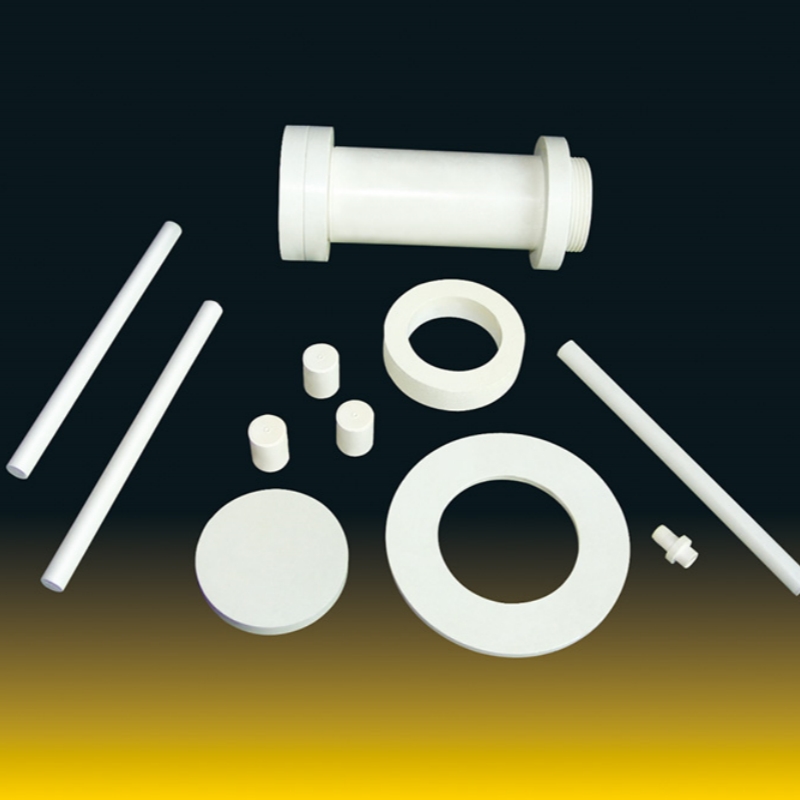

Boron Nitride Structural Components are made from high-purity hexagonal boron nitride powder, which is processed through high-temperature vacuum hot pressing sintering. This advanced manufacturing process results in a material with exceptional high-temperature stability, electrical insulation properties, and chemical inertness. These components are ideal for demanding applications that require high thermal resistance, electrical isolation, and chemical stability. Widely used in industries like semiconductor manufacturing, high-temperature furnaces, and electrical insulation, boron nitride structural components provide reliable and durable performance.
Features
- High-Temperature Stability: Excellent thermal stability allows these components to be used in extreme heat environments without compromising performance.
- Electrical Insulation: Outstanding electrical insulation properties, making them ideal for use in electrical devices and high-voltage applications.
- Chemical Inertness: Exceptional resistance to a wide range of chemicals, making these components suitable for harsh industrial environments.
- Excellent Thermal Conductivity: High thermal conductivity ensures efficient heat management in applications with elevated thermal demands.
- Customizable: Tailored to specific customer requirements, these structural components can be produced in a variety of shapes, sizes, and configurations to meet precise needs.
Applications
- High-Temperature Furnace Insulation: Used in high-temperature furnacesas insulating components, ensuring uniform temperature distribution and thermal stability within the furnace.
- Integrated Circuit Insulating Plates and Boron Diffusion Source Plates: In integrated circuits, these components provide insulation support and effective boron diffusion.
- High-Temperature Crucibles: Ideal for use in high-temperature meltingapplications, these components withstand extreme conditions while maintaining stability and reliability.
- Color CRT Trays: Employed in color CRTs, serving as structural supports to ensure stability and durability in high-temperature environments.
| Performance Indicator | Value |
| Density (g/cm³) | 1.9～2.1 |
| Hardness (Hs) | 2 |
| Compressive Strength (kg/cm²) | > 600 |
| Flexural Strength (kg/cm²) | > 300 |
| Thermal Expansion Coefficient (1/K) | 10×10⁻⁶ |
| Resistivity (Ω·cm) | 10¹⁴ |
| Breakdown Voltage (kV/mm²) | 30~40 |
| Operating Temperature (℃) | Above 2000℃ (Vacuum or Gas Protection) |
