Boron nitride fiber fabric offers exceptional thermal stability, optimized chemical resistance, and superior mechanical strength. Designed for advanced applications, it ensures reliable structural integrity, extended lifespan, and high-performance durability in extreme environments.
Product Overview

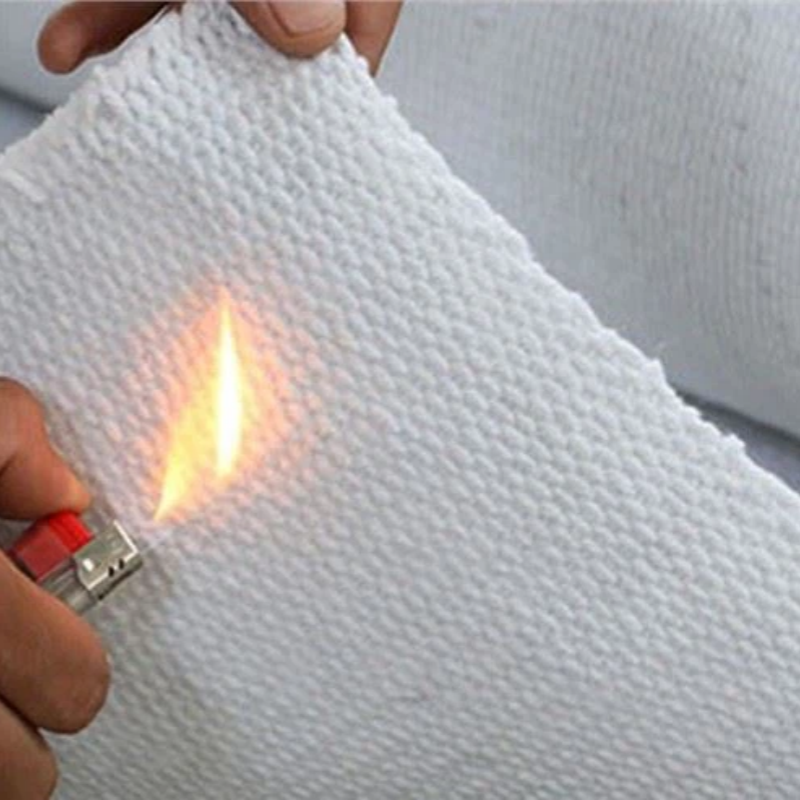

Boron nitride fiber fabric is a high-performance specialty ceramic fiber material made primarily from boron nitride fibers. It features exceptional high-temperature resistance, low dielectric loss, excellent chemical corrosion resistance, good processing capabilities, and strong mechanical properties. This multifunctional, highly durable material is suitable for demanding fields such as aerospace and high-temperature insulation. Boron nitride fiber fabric offers excellent insulation, flame-retardant, and high-temperature resistance properties, making it a next-generation advanced technical material widely used in applications that require extreme working conditions.
Features
- High-Temperature Resistance: Capable of withstanding temperatures up to 2000°C, suitable for various applications in high-temperature environments.
- Low Dielectric Loss: Exhibits extremely low dielectric loss, ideal for high-frequency electrical applications.
- Excellent Chemical Corrosion Resistance: Resistant to a variety of chemicals, making it suitable for harsh environments.
- Good Mechanical Properties: Offers high strength and toughness, adapting to harsh working conditions.
- Flame Retardant: Provides excellent fire resistance, ideal for applications that require strict fire safety measures.
- Insulating Properties: Outstanding electrical insulation performance, suitable for use in electrical and electronic devices.
Applications
- Aerospace: Used as a substrate for spacecraft components, maintaining stability under extreme temperature and pressure conditions.
- High-Temperature Insulation: Provides insulation protection in high-temperature environments, meeting the needs of industrial high-temperature equipment.
- Specialized Electronic Equipment: Used in electronic devices to provide insulation and heat dissipation functions.
- Military and Protective Applications: Used in specialized military equipment as a protective and isolation material.
| Process | Thickness | Surface Density | Conductivity | Dielectric Constant | Dielectric Loss | Temperature Resistance |
| Plain Weave | 250~300 μm | 200~250 g/m² | 10⁻⁹~10⁻¹² S/cm | ≤4.5 | ≤5×10⁻³ | 1600°C Inert Atmosphere |
| Twill | 350~400 μm | 180~220 g/m² | 10⁻⁹~10⁻¹² S/cm | |||
| Double Weft | 400~500 μm | 325~350 g/m² | 10⁻⁹~10⁻¹² S/cm |
